8-point sourcing transistor output unit, 24 VDC, 0.5 A/point, short-circuit protected, screw terminal block.

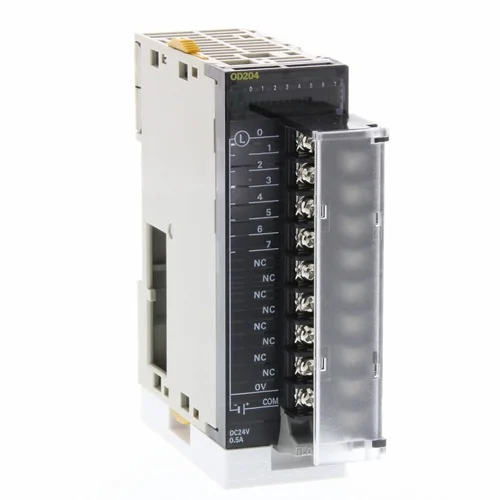

CJ-series digital output unit with 8 sourcing transistor outputs for CJ I/O Bus PLC systems. Designed for 24 VDC load switching with 0.5 A per point, short-circuit protection, alarm indication, and screw-terminal wiring. Official Omron documentation identifies it as a basic I/O expansion unit for CJ-series controllers, with unpacked dimensions of 90 mm H × 31 mm W × 89 mm D and weight of 120 g.
| Parameter | Value |
|---|---|
| I/O system | CJ I/O Bus |
| Expansion unit type | Basic I/O Unit |
| Type of module | Digital I/O |
| Number of digital inputs | 0 |
| Digital input type | None |
| OFF/ON delay | 1-8 ms |
| Number of digital outputs | 8 |
| Digital output type | PNP |
| Rated voltage | 24 VDC |
| Permitted voltage at output | 20.4-26.4 VDC |
| Output current | 0.5 A |
| Maximum load current | 0.5 A/point, 4.0 A/unit |
| Short-circuit protected outputs | Yes |
| I/O connection type | Screw |
| Number of I/O connectors | 1 |
| Detachable I/O terminal block | Yes |
| Suitable for safety functions | No |
| Number of IOV (V+) terminals | 1 |
| Number of IOG (V-) terminals | 1 |
| Number of COM terminals | 0 |
| Leakage current | 0.1 mA max. |
| Residual voltage | 1.5 V max. |
| ON response time | 0.5 ms max. |
| OFF response time | 1.0 ms max. |
| Load short-circuit protection detection current | 0.7 to 2.5 A |
| Load short-circuit protection recovery | Automatic restart after error clearance |
| Insulation resistance | 20 MΩ between external terminals and GR terminal at 100 VDC |
| Dielectric strength | 1,000 VAC between external terminals and GR terminal for 1 minute at 10 mA max. leakage current |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 31 mm |
| Product depth (unpacked) | 89 mm |
| Product weight (unpacked) | 120 g |
Drives multiple 24 VDC solenoids from a CJ-series PLC where each channel needs sourcing outputs and compact DIN-rail mounting.
Provides isolated, protected switching for clustered field actuators without external relay banks.
Controls industrial pilot lamps, beacons, and status indicators that accept 24 VDC output sourcing from a PLC expansion module.
Eliminates relay chatter and simplifies wiring for low-current visual signaling loads.
Suitable for compact machine stations needing several fast, discrete outputs for contactors, small relays, or auxiliary devices within the 0.5 A channel rating.
Enables dense output packing in a limited PLC rack while maintaining fault detection and response speed.
