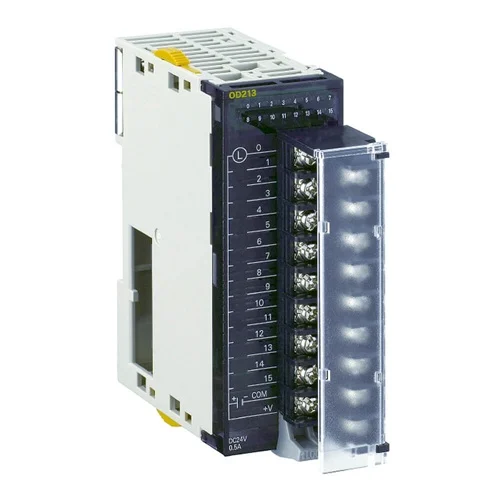

16-point sinking transistor output module, 24 VDC, 0.5 A/point, 15 μs ON, screw terminal, CJ I/O Bus.
CJ-series 16-point transistor output unit with sinking outputs, designed for 24 VDC industrial control systems. Official Omron specifications list 0.5 A per point, 5.0 A per unit, 20.4 to 26.4 VDC operating load range, screw terminal connection, and high-speed switching with 15 μs ON and 80 μs OFF response times. The unit is a CJ I/O Bus expansion module for PLC output control applications.
| Parameter | Value |
|---|---|
| I/O system | CJ I/O Bus |
| Expansion unit type | Basic I/O Unit |
| Type of module | Digital I/O |
| Number of digital outputs | 16 |
| Digital output type | NPN |
| Rated voltage | 24 VDC |
| Operating load voltage range | 20.4 to 26.4 VDC |
| Maximum load current | 0.5 A/point, 5.0 A/Unit |
| Maximum inrush current | 4.0 A/point, 10 ms max. |
| Leakage current | 0.1 mA max. |
| Residual voltage | 1.5 V max. |
| ON response time | 15 μs max. |
| OFF response time | 80 μs max. |
| Insulation resistance | 20 MΩ between the external terminals and the GR terminal (100 VDC) |
| Dielectric strength | 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max. |
| Number of circuits | 16 (16 points/common, 1 circuit) |
| Internal current consumption | 5 VDC 150 mA max. |
| Fuse | None |
| External power supply | 20.4 to 26.4 VDC, 55 mA min. |
| I/O connection type | Screw |
| Number of I/O connectors | 1 |
| Detachable I/O terminal block | True |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 31 mm |
| Product depth (unpacked) | 89 mm |
| Product weight (unpacked) | 159 g |
| Mounting type | DIN Rail |
| Termination style | Screw Terminal |
Use the 15 μs ON response and 80 μs OFF response for rapid PLC-driven actuator, solenoid, or indicator switching in compact machines.
Reduces output latency where fast state changes matter for sequencing and timing accuracy.
Drive multiple 24 VDC field devices from one 16-point sinking output module in conveyor or transfer-line control cabinets.
Consolidates many low-current loads into a single CJ I/O Bus module with defined per-point current limits.
Switch valves, reject gates, stack lights, and interlocks in packaging cells that use 24 VDC logic and fast output timing.
Provides dense, reliable output density in a small DIN-rail footprint for space-constrained control panels.
