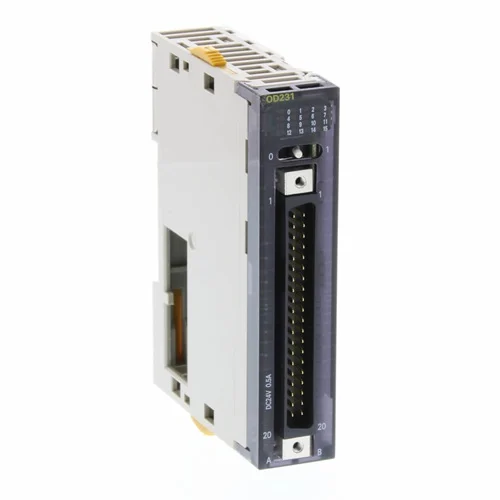

32-point NPN sinking PLC output unit, 12–24 VDC, 0.5 A/point, FCN40 connector, 0.1 ms ON response.
CJ-series 32-point transistor output unit for Omron CJ I/O Bus systems. Provides NPN sinking outputs on a Fujitsu/OTAX FCN40 connector, with 12 to 24 VDC rated supply, 10.2 to 26.4 VDC operating load range, 0.5 A per point, 4.0 A per unit, 0.1 ms ON response, and 0.8 ms OFF response. Official Omron documentation also lists 32 outputs arranged as 16 points/common over 2 circuits, internal consumption of 140 mA max at 5 VDC, external power supply 10.2 to 26.4 VDC, 30 mA min, and bare unit weight of 65 to 70 g depending on region listing.
| Parameter | Value |
|---|---|
| I/O system | CJ I/O Bus |
| Expansion unit type | Basic I/O Unit |
| Type of module | Digital I/O |
| Number of digital outputs | 32 |
| Digital output type | NPN |
| Rated voltage | 12 to 24 VDC |
| Operating load voltage range | 10.2 to 26.4 VDC |
| Maximum load current | 0.5 A/point, 2.0 A/common, 4.0 A/Unit |
| Maximum inrush current | 4.0 A/point, 10 ms max. |
| Leakage current | 0.1 mA max. |
| Residual voltage | 1.5 V max. |
| ON response time | 0.1 ms max. |
| OFF response time | 0.8 ms max. |
| Insulation resistance | 20 MΩ between the external terminals and the GR terminal (100 VDC) |
| Dielectric strength | 1,000 VAC between the external terminals and the GR terminal for 1 minute at 10 mA max. leakage current |
| Number of circuits | 32 (16 points/common, 2 circuits) |
| Internal current consumption | 5 VDC 140 mA max. |
| Fuse | None |
| External power supply | 10.2 to 26.4 VDC, 30 mA min. |
| I/O connection type | FCN (plug not included) |
| Number of I/O connectors | 1 |
| Detachable I/O terminal block | No |
| Short-circuit protected outputs | No |
| Suitable for safety functions | No |
| Number of IOV (V+) terminals | 2 |
| Number of IOG (V-) terminals | 2 |
| Number of COM terminals | 0 |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 20 mm |
| Product depth (unpacked) | 66.5 mm |
| Product weight (unpacked) | 65 to 70 g |
Drives 32 discrete sinking loads from a compact CJ PLC rack, ideal for solenoids, relays, and indicator stacks where many outputs must fit in limited panel space.
Reduces rack footprint while increasing discrete output count without external relay expansion.
Supports rapid switching with 0.1 ms ON and 0.8 ms OFF response, making it suitable for high-cycle automation tasks with short pulse timing.
Minimizes command-to-output delay in repetitive sequencing and timing-sensitive control.
Uses a Fujitsu/OTAX FCN40 connector interface, enabling multi-line field wiring to be consolidated through connectorized harnesses in control cabinets.
Simplifies dense wiring layouts and improves serviceability in modular control panels.
