32-point sinking transistor PLC output unit, 12–24 VDC load range, 0.5 A/point, MIL connector, 70 g max.

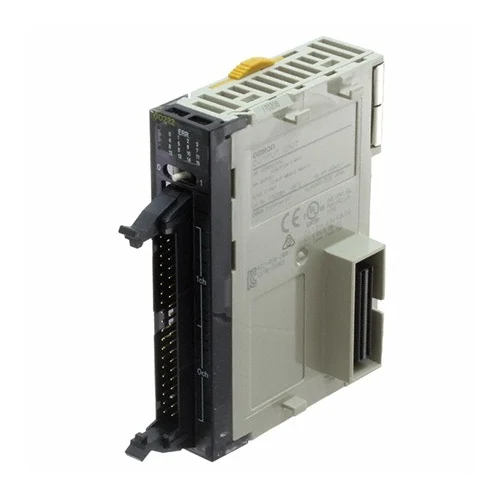

CJ-series transistor output unit with 32 sinking outputs on MIL connector interface. Official Omron documentation identifies it as a 12 to 24 VDC output unit with 0.5 A per point, 2 A per common, and 4 A per unit. It is designed for CJ-series PLC expansion where compact, high-density DC load switching is required, and uses a 32-point MIL connector arrangement for field wiring integration. The unit weight is listed as 70 g max in Omron hardware documentation.
| Parameter | Value |
|---|---|
| Type | Transistor output unit, sinking |
| Number of outputs | 32 |
| Rated voltage | 12 to 24 V DC |
| Operating load voltage range | 10.2 to 26.4 V DC |
| Maximum load current | 0.5 A/point, 2 A/common, 4 A/unit |
| Maximum inrush current | 4.0 A/point, 10 ms max. |
| Leakage current | 0.1 mA max. |
| Residual voltage | 1.5 V max. |
| ON response time | 0.1 ms max. |
| OFF response time | 0.8 ms max. |
| Insulation resistance | 20 MΩ between external terminals and GR terminal (100 V DC) |
| Dielectric strength | 1,000 V AC between external terminals and GR terminal for 1 minute at 10 mA max. leakage current |
| Number of circuits | 32 (16 points/common, 2 circuits) |
| Internal current consumption | 5 V DC: 140 mA max. |
| Connector type | MIL connector |
| Weight | 70 g max. |
Ideal for machine tools or packaging skids that need many 24 VDC valves switched from a compact PLC expansion module.
Provides 32 sinking outputs with 0.5 A per point, reducing module count and panel space.
Suitable for factory panels driving lamps, relays, small DC actuators, and stack lights where fast response matters.
Fast ON/OFF timing supports responsive discrete control with low residual voltage.
Works well in OEM machines needing a dense output block with connectorized wiring for simplified assembly and maintenance.
MIL connector architecture and 32-channel density streamline field wiring and reduce harness complexity.
