64-point NPN sinking PLC output module, 12–24 VDC, 0.3 A/point, Fujitsu/OTAX connectors, CJ I/O Bus expansion.

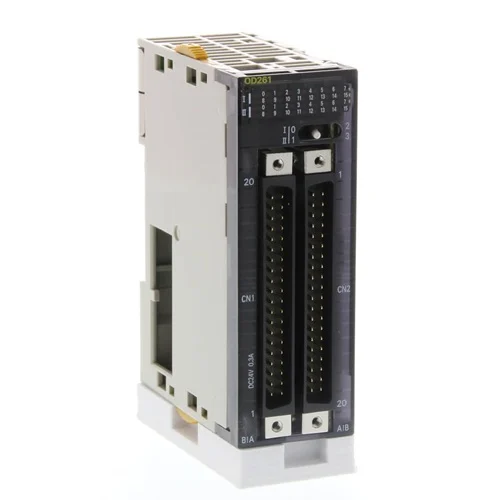

CJ-series digital transistor output unit for Omron CJ I/O Bus systems. It provides 64 sinking NPN outputs on Fujitsu/OTAX connectors, supporting 12 to 24 VDC loads with up to 0.3 A per point and 6.4 A per unit. The unit is designed as a basic I/O expansion module for high-density discrete control in PLC panels.
| Parameter | Value |
|---|---|
| I/O system | CJ I/O Bus |
| Expansion unit type | Basic I/O Unit |
| Type of module | Digital I/O |
| Number of digital inputs | 0 |
| Number of digital outputs | 64 |
| Digital output type | NPN |
| Rated voltage | 12 to 24 VDC |
| Operating load voltage range | 10.2 to 26.4 VDC |
| Maximum load current | 0.3 A/point, 1.6 A/common, 6.4 A/Unit |
| Maximum inrush current | 3.0 A/point, 10 ms max. |
| Leakage current | 0.1 mA max. |
| Residual voltage | 1.5 V max. |
| ON response time | 0.5 ms max. |
| OFF response time | 1.0 ms max. |
| Insulation resistance | 20 MΩ between the external terminals and the GR terminal (100 VDC) |
| Dielectric strength | 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max. |
| Number of circuits | 64 (16 points/common, 4 circuits) |
| Internal current consumption | 5 VDC, 170 mA max. |
| Fuse | None |
| External power supply | 10.2 to 26.4 VDC, 50 mA min. |
| I/O connection type | FCN (plug not included) |
| Number of I/O connectors | 2 |
| Detachable I/O terminal block | No |
| Suitable for safety functions | No |
| Number of IOV (V+) terminals | 8 |
| Number of IOG (V-) terminals | 8 |
| Number of COM terminals | 0 |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 31 mm |
| Product depth (unpacked) | 66.5 mm |
| Product weight (unpacked) | 110 g |
Ideal for compact PLC panels that must switch many 24 VDC solenoids, pilot lamps, or relays from a single CJ-series rack slot.
Reduces rack space and wiring complexity while providing 64 discrete outputs for dense machine sequencing.
Suitable for packaging machines with many coordinated output devices such as valves, indicators, and stack lights operating within 12–24 VDC control circuits.
Supports many low-voltage DC loads with fast response times for synchronized machine motion and interlocks.
Works well for conveyor diverters, reject gates, and indicator arrays requiring high-channel-count sink outputs in a standard industrial PLC architecture.
Provides reliable multi-channel actuation from a centralized controller without needing separate output subsystems.
