64-point sourcing transistor output module, 12–24 VDC, 0.3 A/point, MIL connectors, 0.5 ms ON response.

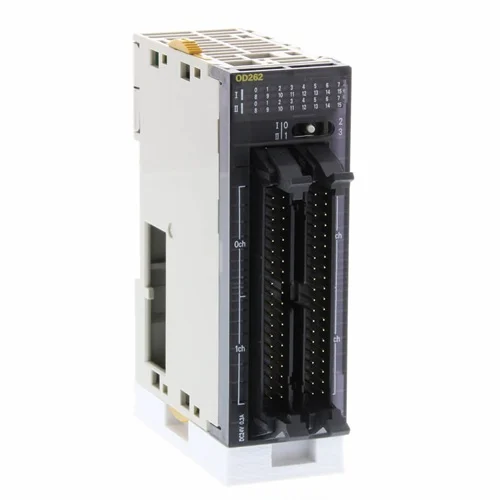

CJ-series 64-point transistor output unit with MIL connectors for CJ I/O bus expansion. This sourcing output module is specified for 12 to 24 VDC rated load operation, 10.2 to 26.4 VDC operating range, and up to 0.3 A per point with 6.4 A per unit. It provides fast switching with 0.5 ms maximum ON response and 1.0 ms maximum OFF response, and is intended for compact, high-density industrial control wiring. Manufacturer and distributor listings confirm the product designation, output type, and physical form factor; the official Omron specification page confirms the electrical ratings and bare product dimensions.
| Parameter | Value |
|---|---|
| Rated Voltage | 12 to 24 VDC |
| Operating Load Voltage Range | 10.2 to 26.4 VDC |
| Maximum Load Current | 0.3 A/point, 1.6 A/common, 6.4 A/Unit |
| Maximum Inrush Current | 3.0 A/point, 10 ms max. |
| Leakage Current | 0.1 mA max. |
| Residual Voltage | 1.5 V max. |
| ON Response Time | 0.5 ms max. |
| OFF Response Time | 1.0 ms max. |
| Insulation Resistance | 20 MΩ between the external terminals and the GR terminal (100 VDC) |
| Dielectric Strength | 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max. |
| Number of Circuits | 64 (16 points/common, 4 circuits) |
| Internal Current Consumption | 170 mA max. (5 VDC) |
| Fuse | None |
| External Power Supply | 10.2 to 26.4 VDC, 50 mA min. |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 31 mm |
| Product Depth (unpacked) | 83.6 mm |
| Product Weight (unpacked) | 110 g |
Drives many 24 VDC field actuators from a compact CJ rack when dense output count and MIL connector wiring are needed.
Reduces panel space and wiring complexity for large groups of solenoids, pilot lamps, and small relays.
Supports rapid on/off control for conveyor gates, reject devices, and indexing mechanisms where 0.5 ms switching helps timing precision.
Minimizes output latency in time-critical discrete control sequences.
Fits existing CJ-series architectures that already use connectorized output harnesses, allowing replacement without redesigning the I/O backplane strategy.
Preserves wiring topology while upgrading or restoring a failed output module.
