50K-step CJ-series CPU with 2560 I/O, RS-232C, USB, 32K words DM, and support for 3 expansion racks.

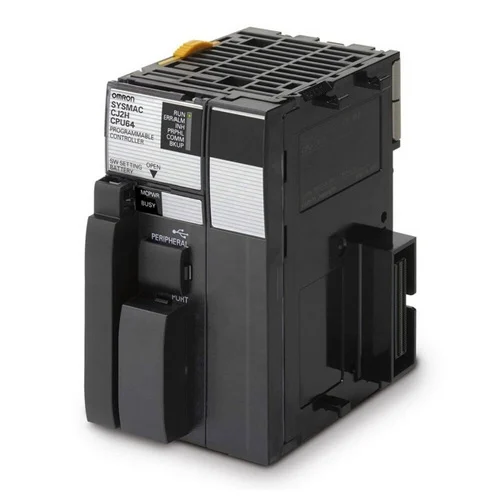

CJ2H-CPU64 is an Omron CJ-series PLC CPU module for panel-mounted industrial control systems. Official OMRON documentation lists it as a CJ2H CPU unit with 50K-step program capacity, 32K words of data memory, 32K words × 4 banks of expansion memory, 2560 total I/O capacity, built-in RS-232C serial communication, USB programming port, and support for up to 3 expansion racks. The CPU operates from a 5 VDC internal supply with 0.42 A current consumption, and the bare unit measures 90 mm × 65 mm × 49 mm and weighs 190 g or less.
| Parameter | Value |
|---|---|
| Program capacity | 50K steps |
| Data memory capacity | 32K words |
| Expansion memory | 32K words × 4 banks |
| Total I/O capacity | 2560 |
| Maximum expansion | 40 units, 3 expansion racks |
| Basic instruction speed | 16 ns |
| System overhead time | 100 µs |
| Connector type | 9 Pin D-Sub Male |
| Current consumption | 5 VDC, 0.42 A |
| Enclosure | Mounted in a panel |
| Grounding | Less than 100 Ω |
| Ambient operating temperature | 0 to 55°C |
| Ambient operating humidity | 10% to 90% (with no condensation) |
| Ambient storage temperature | −20 to 70°C (excluding battery) |
| Altitude | 2,000 m or less |
| CPU rack dimensions (H × D × W) | 90 mm × 65 mm × 49 mm |
| Weight | 190 g or less |
| Built-in communications | RS-232C serial port, USB programming port |
The 16 ns basic instruction speed and 2560 I/O capacity make this CPU well suited for fast discrete sequencing, sensor polling, and reject/divert logic on high-throughput conveyor systems.
Maintains deterministic control for high-volume sorting without starving I/O scan performance.
With support for up to 3 expansion racks and 40 total units, this CPU can coordinate multiple remote I/O blocks, motion-related peripherals, and station interlocks in a single cabinet-based machine.
Provides scalable control architecture for machines that outgrow a compact PLC CPU.
The built-in RS-232C port and USB programming interface support straightforward integration into older industrial equipment that still depends on serial devices, HMIs, or maintenance laptops.
Reduces retrofit complexity when existing field devices use serial communication.
