USD 2,056.03
100K-step CPU with built-in EtherNet/IP, 160K data memory, 2,560 I/O bits, 5 VDC consumption, 0–55 °C operation.

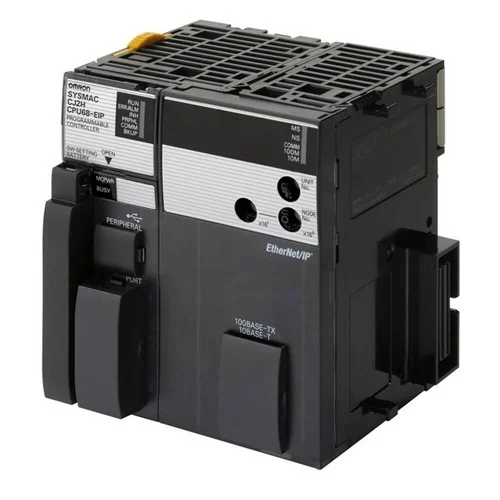

CJ-series CPU unit with built-in EtherNet/IP for machine control applications. Manufacturer and distributor sources identify it as an Omron CJ2H PLC CPU with 100K-step user memory, 160K data memory, 2,560 I/O bits, and support for Ethernet, RS-232C, and USB communications. The unit is panel-mounted, uses 5 VDC internal consumption, and is rated for 0 to 55 °C operation. Omron documentation lists it as part of the CJ2H-CPU6[]-EIP family with compact rack-format dimensions and EtherNet/IP built-in networking.
| Parameter | Value |
|---|---|
| Enclosure | Mounted in a panel |
| Grounding | Less than 100 Ω |
| CPU rack dimensions | 90 mm × 65 mm × 80 mm (H × D × W) |
| Weight | 280 g or less |
| Current consumption | 5 VDC, 0.82 A |
| Ambient operating temperature | 0 to 55 °C |
| Ambient operating humidity | 10% to 90% (with no condensation) |
| Ambient storage temperature | -20 to 70 °C (excluding battery) |
| Altitude | 2,000 m or less |
| Pollution degree | 2 or less |
| Noise immunity | 2 kV on power supply line |
| Overvoltage category | Category II |
| EMC immunity level | Zone B |
| Vibration resistance | Conforms to IEC 60068-2-6 |
| Shock resistance | Conforms to IEC 60068-2-27 |
| Battery life | 5 years at 25 °C |
| Battery weight | Approx. 10 g |
| Battery model | CJ1W-BAT01 |
| User memory | 100K steps |
| I/O bits | 2,560 bits |
| Overhead processing time | Normal mode: 200 μs |
| Basic instruction execution time | 0.016 μs min. |
| Special instruction execution time | 0.048 μs min. |
| Maximum connectable units | 10 units max. per CPU rack or expansion rack; 40 units max. per PLC |
| Maximum expansion racks | 3 max. |
| Power supply line noise immunity standard | IEC 61000-4-4 |
| Applicable standards | cULus, NK, LR, EC Directives |
| Communications | Ethernet, RS-232C (CompoWay/F, Modbus), USB |
Controls coordinated packaging motions and line stations using built-in EtherNet/IP for deterministic machine-network communication and 2,560 I/O bits for dense discrete control.
Reduces network complexity while supporting high I/O count and fast control for synchronized packaging machinery.
Fits compact panel-mounted machinery where a single CPU must handle multiple distributed devices, serial maintenance tools, and expansion racks within a small control enclosure.
Provides a compact controller with enough memory and expansion capacity for multi-station automation without oversized cabinets.
Suited to conveyors, indexing tables, and transfer systems requiring fast basic instruction execution, cyclic control, and stable operation in industrial environments.
Delivers fast scan performance and rugged environmental ratings for continuous material movement control.
