USD 2,049.62
150K-step PLC CPU, 0.016 μs instruction speed, 2,560 I/O bits, 5 VDC 0.42 A, panel-mount, 3 expansion racks.

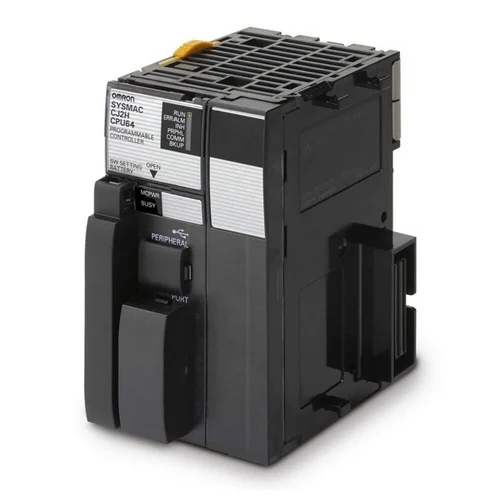

CJ-series CPU unit for Omron SYSMAC modular PLC systems. The CJ2H-CPU66 offers 150K-step user memory, 2,560 I/O bits, 0.016 μs basic instruction execution time, and support for up to 40 units per PLC with 3 expansion racks. It is panel-mounted, uses 5 VDC at 0.42 A, and is specified for industrial environments from 0 to 55 °C with IEC 61010-2-201 category II compliance and vibration/shock immunity per IEC 60068. The unit is part of Omron’s high-speed, high-capacity CJ2H family and is distributed through major industrial channels such as Mouser and DigiKey.
| Parameter | Value |
|---|---|
| CPU Rack Dimensions | 90 mm × 65 mm × 49 mm (H × D × W) |
| Weight | 190 g or less (includes end covers and battery) |
| Current Consumption | 5 VDC, 0.42 A |
| Ambient Operating Temperature | 0 to 55 °C |
| Ambient Operating Humidity | 10% to 90% (with no condensation) |
| Ambient Storage Temperature | -20 to 70 °C (excluding battery) |
| Altitude | 2,000 m or less |
| Pollution Degree | 2 or less |
| Noise Immunity | 2 kV on power supply line |
| Overvoltage Category | Category II |
| EMC Immunity Level | Zone B |
| Vibration Resistance | Conforms to IEC 60068-2-6 |
| Shock Resistance | Conforms to IEC 60068-2-27 |
| Battery Model | CJ1W-BAT01 |
| Battery Life | 5 years at 25 °C |
| Applicable Standards | cULus, NK, LR, EC Directives |
| User Memory | 150K steps |
| I/O Bits | 2,560 bits |
| Processing Speed - Overhead Processing Time | Normal Mode: 100 μs |
| Execution Time - Basic Instructions | 0.016 μs min. |
| Execution Time - Special Instructions | 0.048 μs min. |
| Maximum Number of Connectable Units | 10 units max. per CPU rack or expansion rack; 40 units max. per PLC |
| Maximum Number of Expansion Racks | 3 max. |
The 0.016 μs instruction speed and 150K-step memory suit fast conveyor, picker, and reject logic on compact packaging machines.
Maintains deterministic control for many interlocked stations without overloading PLC scan capacity.
Up to 40 connectable units and 3 expansion racks support distributed I/O and mixed special-function modules in a single machine cell.
Reduces controller count while scaling I/O and function blocks across several machine sections.
Panel-mount construction, 0 to 55 °C operation, and IEC shock/vibration compliance fit enclosed industrial cabinets on factory floors.
Provides reliable control in vibrating electrical panels with moderate thermal stress and electrical noise.
