USD 521.33
Compact PLC CPU with 10K-step program memory, 64K-word data memory, RS-232C, USB, and up to 2,560 I/O points.

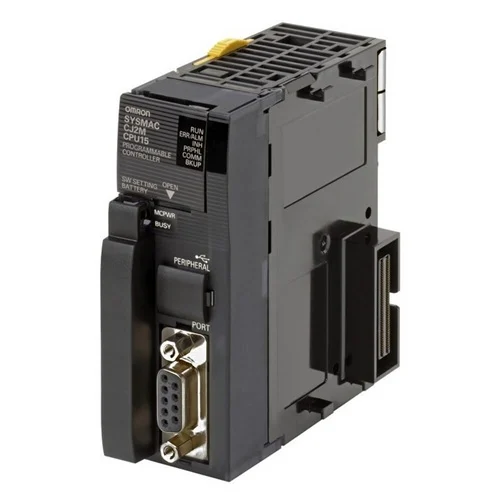

Compact CJ2M-series PLC CPU unit with 10K-step program capacity, 64K-word data memory, RS-232C serial communication, USB programming, and support for up to 2,560 I/O points across 3 expansion racks. Official Omron documentation and distributor listings identify it as a CPU module for CJ-series automation systems. The unit is designed for modular machine control where a small CPU footprint and expansion capability are required.
| Parameter | Value |
|---|---|
| Program capacity | 10K steps |
| Data memory capacity | 64K words |
| EM bank capacity | 32K words x 1 bank |
| Maximum local I/O points | 2560 |
| Maximum expansion racks | 3 |
| Maximum expansion units | 40 units |
| Built-in communication ports | RS-232C, USB |
| Basic instruction speed | 40 ns |
| System overhead time | 160 µs |
| Connector type | 9-pin D-Sub male |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 31 mm |
| Product depth (unpacked) | 84.5 mm |
| Product weight (unpacked) | 130 g |
The 10K-step CPU, 2,560-point I/O capacity, and 3-rack expansion support make it suitable for compact multi-station machines that need deterministic control with moderate I/O scaling.
Provides a small-footprint controller for machines that outgrow micro PLCs but do not need a large high-end CPU.
Built-in RS-232C and USB ports support commissioning, legacy device integration, and service access in OEM equipment that still depends on serial peripherals.
Eliminates the need for a separate serial gateway when integrating legacy instruments or terminals.
Its compact 90 mm × 31 mm × 84.5 mm body and 130 g mass are well suited to retrofit panels where cabinet space is constrained but reliable PLC control is still required.
Allows replacement of older controllers in tight enclosures without redesigning the panel layout.
