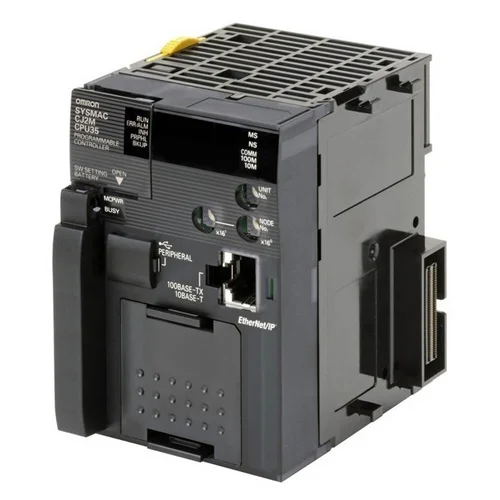

Modular PLC CPU with built-in EtherNet/IP, USB programming, 30K-step logic capacity, and CJ-series expansion support.
Modular PLC CPU with built-in EtherNet/IP, USB programming, 30K-step logic capacity, and CJ-series expansion support.
| Parameter | Value |
|---|---|
| Programming language support | Ladder Logic (LD), Sequential Function Charts (SFC), and Structured Text (ST) |
| Peripheral port | USB 2.0-compliant B-type connector |
| Peripheral port baud rate | 12 Mbps max. |
| Peripheral port transmission distance | 5 m max. |
| EtherNet/IP port | Built-in |
| Ethernet speed | 100 Mbps (100Base-TX) |
| Ethernet transmission media | Shielded twisted-pair (STP) cable, Category 5 or 5e |
| Ethernet transmission distance | 100 m max. between switch and node |
| System power consumption addition with serial option board | Add 0.005 A, 0.030 A, or 0.075 A depending on option board used |
| Total I/O capacity | 2,560 points max. |
| Maximum expansion racks | 3 max. |
| Maximum connectable CJ/NX units per CPU rack or expansion rack | 10 units |
| Program capacity | 30K steps |
| DM capacity | 50K words |
| Basic instruction speed | 60 ns |
| Model class | CPU14/34 |
| Shock resistance | Conforms to IEC60068-2-27; 147 m/s2, 3 times in X, Y, and Z directions |
| Battery life | 5 years at 25°C |
| Battery model | CJ1W-BAT01 |
| Applicable standards | Conforms to cULus, NK, LR, and EC Directives |
| Dimensions (W x H x D) | 90 mm x 90 mm x 84.5 mm |
| Weight | Approx. 220 g |
| Physical Weight (kg) | 0.19 |
| Dimensions L x W x H (cm) | 9 x 8.4 x 6.2 |
The 30K-step CPU with EtherNet/IP and CJ-series expansion is well suited to coordinated packaging lines requiring deterministic sequencing, remote I/O, and HMI integration.
Provides a compact controller for synchronized machine sequences with networked diagnostics and modular expansion.
The modular CPU can coordinate multiple distributed I/O points across a system with up to 2,560 points and expansion racks, making it suitable for conveyor routing and transfer equipment.
Handles multi-station I/O orchestration without requiring a large monolithic PLC.
Compatibility with pulse I/O modules and high-speed control characteristics makes it appropriate for indexing tables and small motion machines that need pulse-based synchronization.
Supports motion-oriented control tasks in compact machines that need pulse output and fast ladder execution.
