USD 2,530.55
60K-step CPU with built-in EtherNet/IP, 160K-word memory, 2,560 I/O points, 0.04 μs basic instruction time.

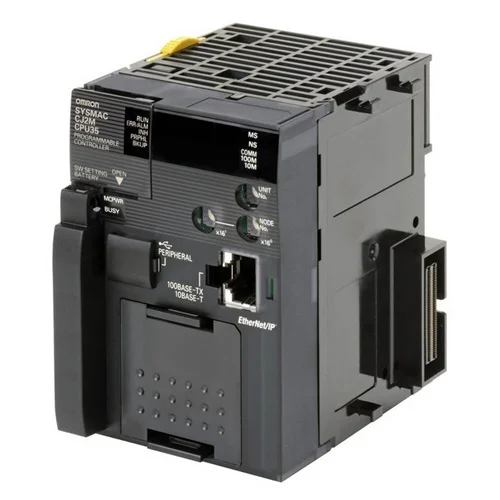

CJ-series CPU unit with built-in EtherNet/IP, designed for mid-range machine control in the CJ2M family. The CJ2M-CPU35 supports up to 60K steps of user memory, 160K words of data memory, up to 2,560 I/O points across 40 units and up to 3 expansion racks, with a 0.04 μs basic instruction execution time. Manufacturer documentation lists a 5 VDC, 0.7 A current consumption, panel-mounted enclosure, and compatibility with CJ-series expansion and option boards.
| Parameter | Value |
|---|---|
| CPU Unit Dimensions | 90 mm × 75 mm × 62 mm |
| Weight | 190 g or less (includes end covers and battery) |
| Current Consumption | 5 VDC, 0.7 A |
| Program Capacity | 60K steps |
| Data Memory Capacity | 160K words (DM: 32K words, EM: 32K words × 4 banks) |
| I/O Capacity | 2,560 points / 40 units (3 expansion racks max.) |
| Basic Instruction Execution Time | 0.04 μs |
| EtherNet/IP Function | Yes |
| Option Board Slot | Yes |
| Mounting Type | Mounted in a panel |
| Ambient Operating Temperature | 0 to 55 °C |
| Ambient Operating Humidity | 10% to 90% (non-condensing) |
| Ambient Storage Temperature | -20 to 70 °C (excluding battery) |
| Altitude | 2,000 m or less |
| Pollution Degree | 2 or less (IEC 61010-2-201) |
| Overvoltage Category | Category II (IEC 61010-2-201) |
| Noise Immunity | 2 kV on power supply line (IEC 61000-4-4) |
| Vibration Resistance | IEC 60068-2-6 |
| Shock Resistance | IEC 60068-2-27 |
| Applicable Standards | cULus, NK, LR, EC Directives |
The 0.04 μs instruction time and built-in EtherNet/IP support fit coordinated conveyor, feeder, and servo sequencing in compact packaging machines.
Reduces cycle-time bottlenecks while enabling deterministic networked machine coordination.
Up to 3 expansion racks and 40 units let the CPU scale with additional I/O and special units for stations, fixtures, and interlocks.
Supports modular line growth without replacing the controller platform.
The CPU’s built-in networking and memory capacity support multi-axis logic, shift registers, and tracking in conveyor-based transfer systems.
Maintains synchronized part tracking and inter-station handoff in distributed material flow applications.
