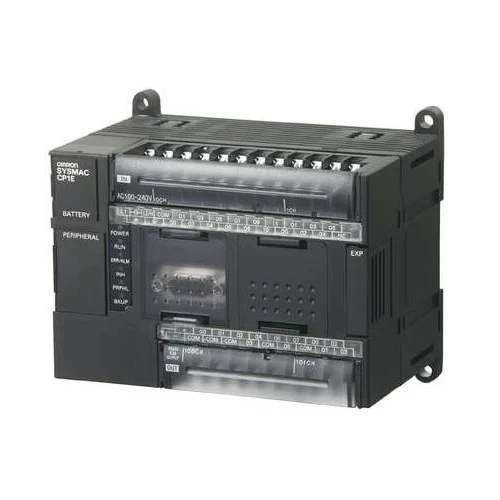

Omron CP1E-N30DR-D Programmable Logic Controller

Technical Overview

Compact application-type PLC CPU with 24 VDC supply, featuring 18 digital inputs, 12 relay outputs, 8K step program capacity, and built-in RS-232C/USB ports.

Key Features

Economical and efficient N-type application CPU Unit with 30 built-in I/O points
Equipped with 18 digital DC inputs and 12 robust relay outputs
Generous program memory of 8K steps and data memory of 8K words
Built-in RS-232C and USB 2.0 communication ports for hassle-free programming and peripheral connections
Complete high-speed counter functionality supporting 2 axes at 100 kHz and 4 axes at 10 kHz
Allows expandability via CP1W series expansion I/O and specialty units
Compact housing optimized for DIN rail or panel mounting in space-constrained enclosures

Technical Specification Matrix

Parameter	Value
Power Supply Voltage	24 VDC
Operating Voltage Range	20.4 to 26.4 VDC
Number of Inputs	18 inputs (24 VDC)
Number of Outputs	12 outputs (Relay)
Output Rating	2 A at 250 VAC / 24 VDC
Program Capacity	8K steps
Data Memory Capacity	8K words
5 VDC Current Consumption	0.21 A
24 VDC Current Consumption	0.07 A
High-speed Counter Inputs	2 axes at 100 kHz, 4 axes at 10 kHz
Quick-response Inputs	6 inputs (50 µs min. input pulse width)
Serial Ports	1 RS-232C port
USB Ports	1 USB 2.0 (Type B) port
Ambient Operating Temperature	0 to 55 °C
Ambient Operating Humidity	10% to 90% RH (non-condensing)
Mounting	DIN Rail / Panel Mount
Physical Weight (kg)	0.52
Dimensions L x W x H (cm)	8.5 x 13 x 9

Industrial Applications

1. Automated Conveyor Sorting System

Utilizes the built-in 100 kHz high-speed counter inputs to read pulse feedback from a rotary encoder, tracking conveyor speed and package position. The 18 digital inputs collect product identification signals from photoelectric eyes, while the 12 relay outputs switch pneumatic diverter solenoids and direct-on-line motor contactors to sort items.

Problem Solved

Provides real-time, high-precision distance tracking on moving sorting lanes and switches high-current actuators directly (up to 2 A) without requiring external signal isolation relays, saving DIN rail space.

High-speed CounterRotary EncoderRelay OutputsPhotoelectric SensorPneumatic Control

2. Alternating Pump Station Controller

Performs duty-standby alternation for multiple industrial water pumps. Level switches monitor wet-well depth through digital inputs. The PLC cycles the pump run times to ensure uniform equipment wear and drives large motor starter contactor coils directly via its robust 12 relay outputs, while communicating station telemetry via the RS-232C interface.

Problem Solved

Eliminates premature wear on single pumps by automating wear-leveling control logic and switches inductive contactor coil loads reliably under a common 24 VDC industrial control environment.

Pump AlternationInductive Load SwitchingRS-232C TelemetryContactor ControlLevel Sensors

3. Form-Fill-Seal Packaging Machine

Coordinates film feeding, bag sealing, and product dispensing. The CP1E reads registration marks on plastic film via quick-response digital inputs (with a 50 µs response time), measures bag length with encoder feedback, and actuates thermal sealing jaws and product dump gates using its high-capacity relay outputs.

Problem Solved

Maintains packaging alignment at high speeds by responding to photo-eye signals within microseconds, while directly controlling thermal jaw contactors and pneumatic valves from a single, low-cost platform.

Quick-response InputsRegistration Mark DetectionHeat Sealing ControlSolenoid ValvesPackaging Machine
