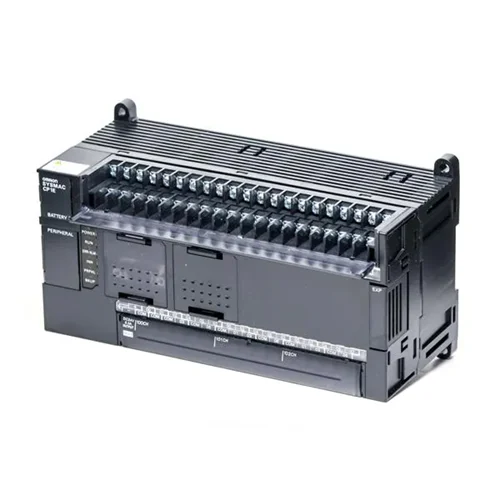

Omron CP1E-N30SDR-A Programmable Logic Controller

Technical Overview

Compact AC-powered PLC CPU unit featuring 18 digital inputs, 12 relay outputs, 8K step program capacity, integrated USB and RS-232C ports, and IP20 protection.

Key Features

Built-in 30 I/O points (18 PNP/NPN digital inputs and 12 reliable relay outputs)
Ample storage with 8K steps of program capacity and 8K words of data memory
Equipped with integrated USB 2.0 mini-B and RS-232C communication ports
Supports up to three expansion units or expansion I/O units for flexible system scalability
Complete high-speed counter functionality supporting up to 6 high-speed inputs (100kHz / 50kHz)
Efficient CX-Programmer environment supporting easy ladder programming with smart-input suggestion
Built-in auxiliary 24 VDC output (300 mA) to power external sensors and input devices

Technical Specification Matrix

Parameter	Value
Supply Voltage	100 to 240 VAC (50/60 Hz)
Operating Voltage Range	85 to 264 VAC
Built-in Inputs	18 inputs (24 VDC, PNP/NPN)
Built-in Outputs	12 outputs (Relay)
Maximum Switching Capacity	2 A at 24 VDC, 2 A at 250 VAC
Program Capacity	8K steps
Data Memory Capacity	8K words
Logic Execution Time	1.19 µs (Basic instructions)
Communication Ports	1 x USB 2.0 (Type mini-B), 1 x RS-232C
Current Consumption	0.21 A at 5 VDC, 0.07 A at 24 VDC
Inrush Current	120 VAC: 20 A max. for 8 ms; 240 VAC: 40 A max. for 8 ms
External Power Supply	24 VDC, 300 mA
Operating Temperature	0 to 55 °C (No icing or condensation)
Operating Humidity	10% to 90% RH (Non-condensing)
IP Rating	IP20
Mounting Type	35 mm DIN Rail or Panel Mounting
Physical Weight (kg)	0.6
Dimensions L x W x H (cm)	13 x 7.9 x 9

Industrial Applications

1. Compact Conveyor Belt Sorting System

Automating material routing and speed monitoring on a short logistics conveyor line. The PLC reads inputs from photo-eyes and inductive proximity sensors to detect package size and presence.

Problem Solved

The 18 built-in digital inputs easily accommodate sensor signals, while the integrated high-speed counter inputs (up to 100kHz) read encoder feedback to synchronize pusher arms powered by the 12 relay outputs.

High-Speed CounterRelay OutputsDigital InputsEncoder FeedbackCX-Programmer

2. Small-Scale Packaging and Bagging Machine

Managing cycle timing, heat-sealing jaws, and filling processes on a vertical form-fill-seal (VFFS) machine.

Problem Solved

The 12 relay outputs (2 A switching capacity) directly switch the solenoids and contactors for heating elements and filling valves, operating on 100-240 VAC mains power without requiring external interposing relays.

AC Power SupplyRelay OutputsSolenoid ControlLadder LogicAuxiliary 24 VDC

3. Pump Alternation and Water Level Control Panel

Monitoring municipal or industrial tank levels and alternating dual-pump operations to distribute run-time wear.

Problem Solved

Leverages the 24 VDC auxiliary output (300 mA) to power multiple ultrasonic level transmitters. The 18 inputs handle float switches and pump run/trip signals, while the rugged IP20 DIN-rail design fits perfectly in standard motor control center (MCC) panels.

IP20 Protection24 VDC Auxiliary OutputPump AlternationDIN Rail MountingRelay Outputs
