USD 292.29

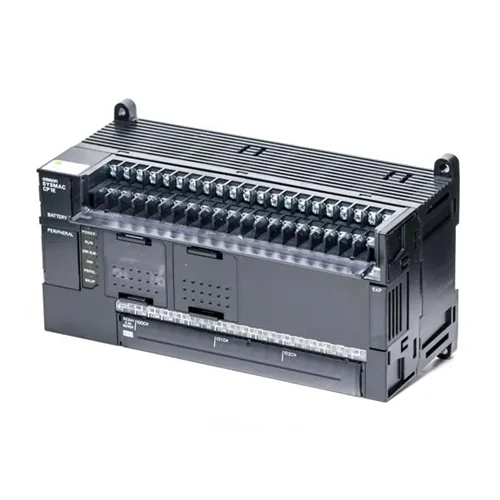

Micro PLC CPU unit featuring 100-240 VAC supply, 24 VDC inputs, 16 sourcing transistor outputs, 8K step memory, and built-in RS-232C and USB interfaces.
Micro PLC CPU unit featuring 100-240 VAC supply, 24 VDC inputs, 16 sourcing transistor outputs, 8K step memory, and built-in RS-232C and USB interfaces.
| Parameter | Value |
|---|---|
| Power Supply Voltage | 100 to 240 VAC, 50/60 Hz |
| Operating Voltage Range | 85 to 264 VAC |
| Power Consumption | 50 VA max at 100 VAC, 70 VA max at 240 VAC |
| Number of Inputs | 24 (24 VDC) |
| Number of Outputs | 16 |
| Output Type | Transistor (Sourcing, PNP) |
| Program Capacity | 8K steps |
| Data Memory Capacity | 8K words |
| Built-in Communication Ports | USB (Type B), RS-232C |
| High-Speed Counters | 6 inputs (2 points at 100 kHz, 4 points at 10 kHz) |
| Pulse Outputs | 2 points at 100 kHz (sourcing) |
| Ambient Operating Temperature | 0°C to 55°C |
| Ambient Operating Humidity | 10% to 90% (with no condensation) |
| Mounting Type | DIN Rail or Panel Mount |
| Physical Weight (kg) | 0.63 |
| Dimensions L x W x H (cm) | 15 x 8.5 x 9 |
Utilizing the built-in 100 kHz high-speed pulse outputs to coordinate positioning control for two-axis stepper or servo drives running material-feed and cut-off registration.
Provides precise synchronized cut-off timing without the need for expensive multi-axis motion control modules, using the on-board PNP sourcing outputs to interface with industrial drive inputs.
Automating localized water treatment or chemical dosing pumps, while using the integrated RS-232C serial port to interface directly with an operator touch screen.
Removes the requirement for external 24 VDC CPU logic power supplies by operating natively on 100-240 VAC utility power, while offering local interface capability via standard RS-232C.
Employing the PLC's high-speed counter inputs (capable of tracking up to 100 kHz rotary encoder feedback) to precisely map and sort physical products along a fast-moving transport line.
Mitigates standard PLC scan time bottlenecks by resolving rapid input pulses from encoders or proximity sensors, ensuring precise tracking and activation of sorting gates via 16 responsive solid-state outputs.
