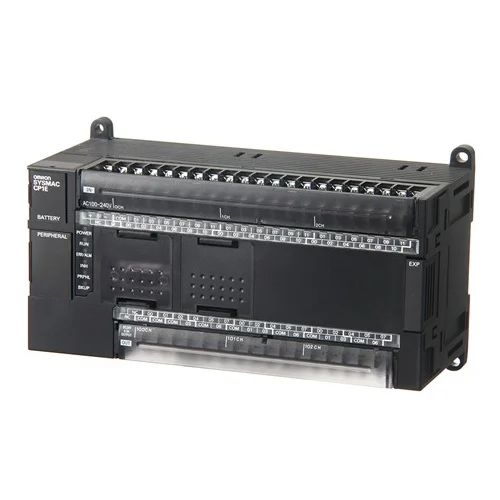

Omron CP1E-N60DR-A Programmable Logic Controller

Technical Overview

N-type CPU with 60 built-in I/O (36 inputs, 24 relay outputs), 100-240 VAC power, 8K step memory, high-speed counters, and integrated RS-232C and USB ports.

Key Features

Equipped with 60 built-in I/O points consisting of 36 inputs (24 VDC) and 24 relay outputs (2 A).
N-type application CPU with integrated high-speed USB and RS-232C ports for programming and communication.
Substantial memory capacity with 8K steps of program memory and 8K words of data storage.
Integrated high-speed counters supporting up to six single-phase 10 kHz or two two-phase 5 kHz inputs.
Enables expandability through connection of optional analog, digital, or temperature input expansion boards.
No-battery mode operation preserves programming and data memory safely during power interruptions.

Technical Specification Matrix

Parameter	Value
Supply Voltage	100 to 240 VAC (50/60 Hz)
Operating Voltage Range	85 to 264 VAC
Power Consumption	50 VA max. at 100 VAC, 70 VA max. at 240 VAC
Number of Inputs	36 (24 VDC)
Number of Outputs	24 (Relay, 2 A max. per point)
Program Capacity	8K steps
Data Memory Capacity	8K words
Built-in Communications	1 USB Port (Type-B), 1 RS-232C Port
Expandability	Up to 3 Expansion Units can be connected
Terminal Screw Size	M3
Ambient Operating Temperature	0 to 55 °C
Ambient Operating Humidity	10% to 90% RH (without condensation)
Mounting Type	DIN Track or panel mounting
Enclosure Rating	Mounted in a panel (IP20)
Physical Weight (kg)	0.85
Dimensions L x W x H (cm)	8.5 x 19.5 x 9

Industrial Applications

1. Automated Packaging and Cartoning Machinery

Utilizing the 60 built-in digital I/O points (36 DC inputs and 24 relay outputs), this controller coordinates multiple optical proximity sensors, pneumatic solenoids, and safety switches in cartoning or wrapping machines without requiring external expansion blocks.

Problem Solved

Consolidates high I/O density into a compact, economical footprint, lowering hardware costs while maintaining rapid sensory response times through built-in hardware inputs.

Packaging AutomationHigh I/O DensityRelay OutputsCompact PLCPneumatic Control

2. HVAC and Water Pump Control Panels

Designed with a native 100-240 VAC power supply and durable 2 A relay outputs, the controller can be directly integrated into municipal water pump systems and commercial fan panels, utilizing logic to alternate pumps and manage damper actuator contactors.

Problem Solved

Eliminates the need for a dedicated 24 VDC control power supply for the PLC and external interposing relays to drive standard 2 A AC inductive coils, simplifying cabinet design.

HVAC ControlPump AlternationAC Power SupplyDirect Contact DrivesControl Panels

3. Multi-Lane Conveyor Sorting Lines

Leveraging the integrated RS-232C serial communication port, this PLC interfaces directly with peripheral serial barcode scanners, weight scales, or Modbus RTU-enabled variable frequency drives (VFDs) to route packages across sorting gates.

Problem Solved

Facilitates localized edge decision-making using the 8K-word data memory, avoiding sorting delays and network latency by managing conveyor routing locally instead of routing all scans back to a central master PLC.

Conveyor SortingRS-232C SerialModbus RTUMaterial HandlingData Buffering
