24 VDC compact PLC CPU, 6 digital inputs, 4 relay outputs, 32K-word memory, DIN-rail mount, USB programming.

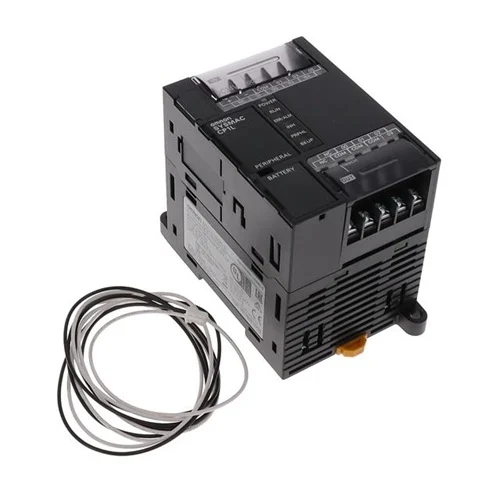

Compact CP1L CPU unit with DC 24 V supply, 6 digital inputs, 4 relay outputs, DIN-rail mounting, USB communication, and 32K-word memory. The CP1L-L10DR-D is the 10-point DC-power relay-output model in Omron’s CP1L family, intended for small machine control and OEM automation tasks.
| Parameter | Value |
|---|---|
| Manufacturer | Omron Automation and Safety |
| Series | CP1L |
| Product type | Programmable Logic Controller (PLC) CPU Unit |
| Power supply voltage | 24 VDC |
| Input count | 6 digital inputs |
| Output count | 4 relay outputs |
| Memory size | 32K words |
| Mounting type | Chassis mount, DIN rail |
| Communications | USB |
| Expandable | 1 module max |
| I/O capacity | 10 points |
| CPU memory capacity | 5K steps |
| High-speed counters | 100 kHz, 4 axes |
| Pulse outputs | 100 kHz, 2 axes |
| Weight | 300 g max. |
| Dimensions | 56 mm x 90 mm x 85 mm (W x H x D) |
Controls small standalone machines that need 24 VDC logic, relay switching, and limited I/O in a compact DIN-rail footprint.
Replaces hardwired relays with programmable sequencing while fitting inside small control panels.
Suitable for low-I/O skids such as pumps, valves, and status interlocks where relay outputs and USB commissioning are sufficient.
Provides simple field wiring and dependable discrete control without needing a larger PLC platform.
Useful for compact automation stations requiring high-speed counters and pulse outputs for basic motion or indexing functions.
Supports fast counting and pulse generation for position-based machine actions in a small controller.
