USD 185.16
24 VDC compact PLC CPU, 14-point class, relay outputs, 5K-step memory, 100 kHz counters, 86 x 90 x 85 mm chassis.

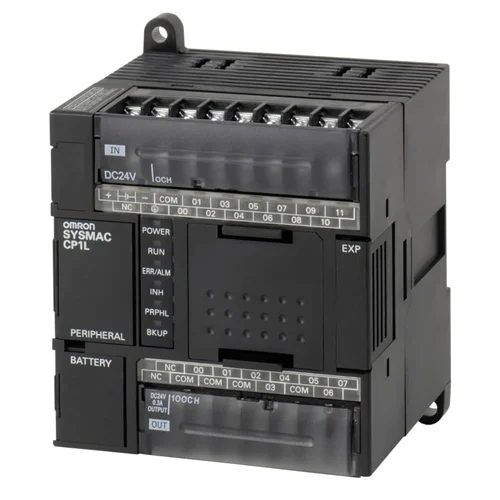

Compact SYSMAC CP1L CPU unit with 24 VDC supply and relay outputs. The L14 model provides 14 I/O points total, 5K-step memory, 100 kHz high-speed counters, 100 kHz pulse outputs on transistor-output variants, and support for expansion and communications options in the CP1L family. Official Omron sources identify the device as a CP1L CPU unit and list the L14DR-D model within the 24 VDC, relay-output lineup. The CP1L series datasheet and lineup materials also confirm the 14-point class, while the CP1L family manual indicates the L14DR-D weighs up to 350 g and the family comparison table gives the standard L14 chassis dimensions as 86 x 90 x 85 mm (W x H x D).
| Parameter | Value |
|---|---|
| Series | SYSMAC CP1L |
| Model class | L14 CPU unit |
| Power supply voltage | 24 VDC |
| Output type | Relay |
| I/O points | 14 points total |
| Program memory | 5K steps |
| High-speed counters | 100 kHz, 4 axes |
| Pulse outputs | 100 kHz, 2 axes (family capability; transistor-output models only) |
| Weight | 350 g max. |
| Dimensions (W x H x D) | 86 x 90 x 85 mm |
Suitable for small packaging equipment that needs a modest I/O count, relay switching for contactor/solenoid loads, and compact panel footprint.
Replaces hardwired relay logic with flexible sequencing in limited cabinet space.
Fits localized conveyor subsystems with start/stop control, sensors, and actuator interlocks where relay outputs and a compact PLC are sufficient.
Provides deterministic control for material handling nodes without overengineering the panel.
Appropriate for skid-mounted utility equipment needing a compact controller for pumps, valves, alarms, and interlocks in a simple control panel.
Delivers local machine control with low wiring complexity and a small footprint.
