USD 104.53
2-channel analog input option board, 0-10 VDC or 0-20 mA, 1/4000 voltage resolution, 1/2000 current resolution.

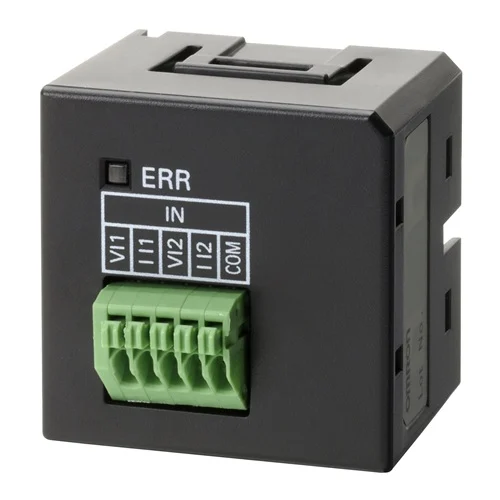

Omron CP1W-ADB21 is a CP1-series CPU Unit option board that adds two analog input channels for 0 to 10 VDC or 0 to 20 mA signals. Official Omron documentation lists 1/4000 resolution for voltage input and 1/2000 resolution for current input, with rated overrange capability to 15 V or 30 mA. The board is intended for mounting in a CPU Unit option slot and is used as a compact analog input interface for CP1L/CP2E-class controllers.
| Parameter | Value |
|---|---|
| Analog input channels | 2 |
| Input signal range | 0 to 10 VDC; 0 to 20 mA |
| Max. rated input | 0 to 15 V; 0 to 30 mA |
| External input impedance | 200 kΩ min. (voltage); Approx. 250 Ω (current) |
| Resolution | 1/4000 (full scale) for voltage; 1/2000 (full scale) for current |
| Overall accuracy at 25°C | ±0.5% (full scale) voltage; ±0.6% (full scale) current |
| Overall accuracy at 0 to 60°C | ±1.0% (full scale) voltage; ±1.2% (full scale) current |
| Overall accuracy at -20 to 0°C | ±1.3% (full scale) voltage; ±1.5% (full scale) current |
| A/D conversion data | 0000 to 0FA0 Hex (voltage); 0000 to 07D0 Hex (current) |
| Averaging function | None |
| Isolation method | No isolation between analog I/O terminals and internal circuits |
| Current consumption | 5 VDC: 20 mA max. |
| Mounting | CPU Unit option board slot |
| Compatible documented use | CP1L CPU Unit option slot; also listed in CP2E documentation for CP1-series analog option board support |
| Cycle time (typical values) | 16~40 ms at 1 ms; 20~60 ms at 10 ms; 20~100 ms at 20 ms |
Interfaces a 0-10 V or 4-20 mA class process transmitter to a CP1-series PLC for level, pressure, or flow feedback.
Converts common industrial analog sensor outputs into PLC-readable values with sufficient resolution for control loops.
Reads analog setpoints from potentiometers, signal conditioners, or supervisory controllers in compact machine panels.
Enables stable acquisition of analog command signals without needing a large external analog module.
Adds two analog input points to existing CP1L-class controls where cabinet space and power budget are limited.
Provides a small-footprint upgrade path for older machines requiring analog feedback without replacing the CPU platform.
