USD 140.87

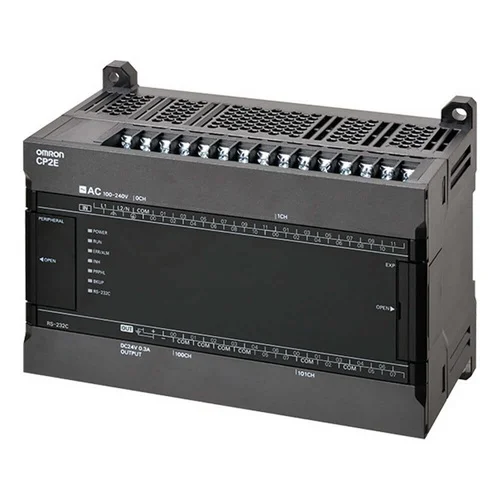

Compact PLC CPU, 100-240 VAC, 24 DI/16 DO relay, RS-232C/USB, 4 kstep memory, 150×90×80 mm, 740 g.
Essential-model compact PLC CPU unit with 100 to 240 VAC supply, 40 total I/O points, and relay outputs. Manufacturer data identifies 24 inputs and 16 outputs, built-in RS-232C/USB communications, up to 160 local I/O points, up to 3 expansion units, 4 kstep program capacity, and 300 mA built-in 24 VDC auxiliary output. Unpacked size is 150 × 90 × 80 mm and weight is 740 g.
| Parameter | Value |
|---|---|
| Product type | CPU Unit, Essential Model |
| Supply voltage | 100 to 240 VAC |
| Total I/O points | 40 |
| Inputs | 24 |
| Outputs | 16 |
| Output type | Relay |
| Built-in communications | RS-232C, USB |
| Max. local I/O points | 160 |
| Max. expansion units | 3 |
| Built-in auxiliary 24 VDC output | 300 mA |
| Program capacity | 4 kStep |
| Operating temperature range | -20 to 60 °C |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 150 mm |
| Product depth (unpacked) | 80 mm |
| Product weight (unpacked) | 740 g |
Controls discrete sensors, relays, and actuators in compact packaging equipment using 24 inputs and 16 relay outputs with AC mains supply.
Replaces hardwired relay logic with programmable sequencing for compact machines.
Handles photoelectric sensors, diverters, and start/stop devices in modest conveyor systems while supporting expansion up to 160 local I/O points.
Provides scalable control for conveyor lines that may need additional I/O later.
Fits small skid-mounted panels needing AC-powered PLC control, auxiliary 24 VDC output, and basic serial communications for status or device interfacing.
Combines control, comms, and 24 VDC auxiliary power in a single compact unit.
