36 DI / 24 relay DO CPU, 100–240 VAC supply, 4K-step memory, built-in USB and serial comms, compact expandable PLC.

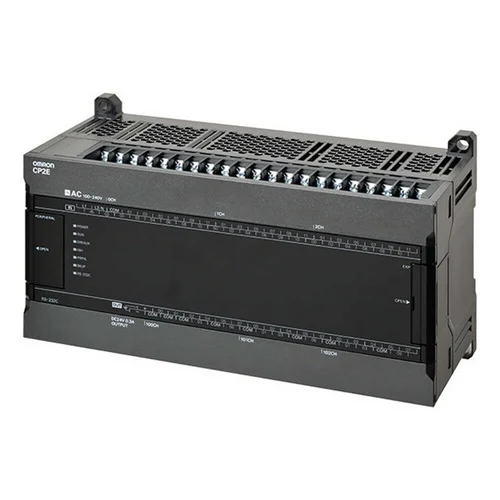

Compact CP2E CPU unit for small to medium machine control, combining 36 digital inputs and 24 relay outputs with 100 to 240 VAC supply, 4K-step program capacity, built-in serial communications, and expandable I/O architecture. Omron positions the CP2E family for data collection, machine-to-machine communication, traceability, and monitoring, with function blocks for Modbus and PID design support.
| Parameter | Value |
|---|---|
| Supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Built-in I/O | 60 |
| Digital inputs | 36 |
| Output type | Relay |
| Digital outputs | 24 |
| Program capacity | 4K steps |
| FB capacity | 4K steps |
| Maximum I/O points | 180 |
| Expansion units supported | 3 |
| Communications | USB, RS-232C |
| Ethernet ports | 0 |
| Power consumption | 20 W max. |
| Inrush current | 120 VAC: 20 A for 8 ms max.; 240 VAC: 40 A for 8 ms max. |
| External power supply | 24 VDC, 300 mA |
| Insulation resistance | 20 MΩ min. at 500 VDC between external AC terminals and GR terminals |
| Dielectric strength | 2,300 VAC, 50/60 Hz for 1 min |
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Program language | Ladder diagram |
| Number of tasks | 17 |
| Maximum subroutines | 128 |
| Maximum jump numbers | 128 |
| High-speed counter inputs | Incremental pulse, up/down, pulse+direction, differential phase inputs |
| Maximum counter frequency | 100 kHz |
| Ambient temperature (operating) | -20 to 60 °C |
| Mounting type | Panel mounted / DIN rail form factor |
| Termination | Screw terminals |
The 36 inputs and 24 relay outputs suit photoeyes, limit switches, valves, and contactor control in compact packaging cells. The 100 to 240 VAC supply and relay outputs simplify integration with mixed industrial loads.
Replaces relay-heavy control panels with a programmable CPU that can directly manage discrete machine sequences.
Built-in high-speed counting and cyclic scan control make it suitable for conveyor indexing, presence detection, and synchronization tasks. Expandability to 180 I/O points supports line growth.
Provides deterministic sequencing and scalable I/O for distributed conveyor sensors and actuators.
The CP2E family is positioned for machine-to-machine communication and data collection, while the CPU includes USB and RS-232C for service, HMI, or serial device integration.
Enables basic machine connectivity and operational data capture without requiring a larger controller platform.
