USD 153.69

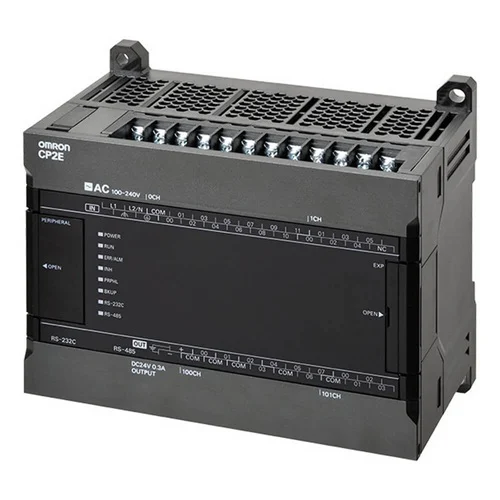

30-point compact PLC CPU with AC supply, relay outputs, 8K-step program memory, 8K-word data memory, and serial/USB communications.
Compact CP2E standard-model CPU unit with 30 built-in I/O points, AC 100 to 240 V supply, relay outputs, and embedded serial/USB communication. Manufacturer documentation shows 18 inputs and 12 outputs, 8K-step program capacity, 8K-word data memory, built-in RS-232C, RS-485, USB, and CompoBus/S Slave support. The unit is intended for small machine control applications requiring flexible local I/O and basic communications in a compact controller form factor.
| Parameter | Value |
|---|---|
| Supply voltage type | AC |
| Supply voltage | 100 to 240 VAC |
| Number of digital inputs | 18 |
| Number of digital outputs | 12 |
| Output type | Relay |
| Program capacity | 8K steps |
| Data memory capacity | 8K words |
| Logic execution time | 0.23 µs |
| Communication ports | Serial RS-232C, Serial RS-485, USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | 1 |
| Communication option(s) | CompoBus/S Slave |
| Number of encoder input channels | 6 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 0 |
| Max. pulse output frequency | 0 kHz |
| Battery-free memory backup | Yes |
| Real-time clock | Yes |
| Max. number of analogue I/O channels | 24 |
| Max. number of local I/O points | 150 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 300 mA |
| Operating temperature range | -20 to 60 °C |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 130 mm |
| Product depth (unpacked) | 80 mm |
| Product weight (unpacked) | 685 g |
Suitable for small packaging, assembly, or indexing machines that need 18 inputs and 12 relay outputs with AC mains power and local serial communication.
Replaces relay logic with a compact PLC that can directly switch moderate field loads and coordinate simple machine states.
Works well when modernizing older equipment that already uses AC supply and point-to-point serial devices, while keeping wiring changes minimal.
Provides PLC control without requiring a full Ethernet-based redesign or 24 VDC control architecture.
Fits compact systems needing distributed expansion, local I/O growth, and coordination of sensors, counters, and simple actuators within the 150-point local limit.
Supports scaling beyond the base unit through expansion while maintaining a small controller footprint.
