USD 211.40
Compact 40-point PLC CPU with 24 DI, 16 relay DO, 100–240 VAC supply, RS-232C/RS-485/USB, 16K-step program memory.

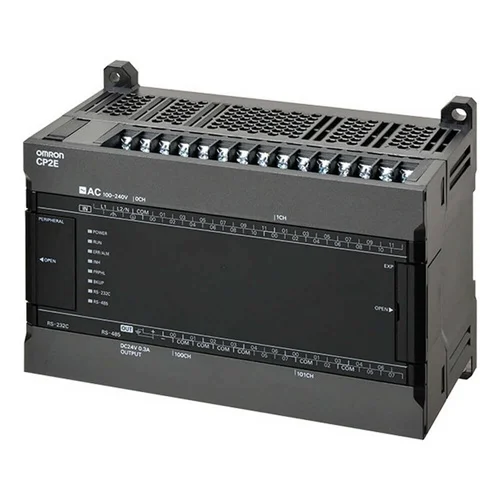

Compact Omron CP2E standard-type PLC CPU with 24 digital inputs, 16 relay outputs, 100 to 240 VAC supply, 16K-step program capacity, and built-in RS-232C, RS-485, and USB communications. Manufacturer and distributor listings confirm a 40-point base unit for machine control applications requiring relay output flexibility and compact panel integration.
| Parameter | Value |
|---|---|
| Supply Voltage | 100 to 240 VAC |
| Digital Inputs | 24 |
| Digital Outputs | 16 |
| Output Type | Relay |
| Program Capacity | 16 K steps |
| Data Memory Capacity | 8 K words |
| Logic Execution Time | 0.23 µs |
| Communication Ports | RS-232C, RS-485, USB |
| Ethernet Ports | 0 |
| USB Ports | 1 |
| RS-232 Ports | 1 |
| RS-485 Ports | 1 |
| Communication Option | CompoBus/S Slave |
| Encoder Input Channels | 6 |
| Maximum Encoder Input Frequency | 100 kHz |
| Maximum Local I/O Points | 160 |
| Maximum Expansion Units | 3 |
| Built-in Auxiliary Output | 24 VDC, 300 mA |
| Operating Temperature Range | -20 to 60 °C |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 150 mm |
| Product Depth (unpacked) | 80 mm |
| Product Weight (unpacked) | 750 g |
The 24 inputs and 16 relay outputs support sensors, pushbuttons, and actuator switching for small packaging lines with mixed load control.
Provides a compact all-in-one controller where relay outputs simplify interfacing to diverse loads and 40-point I/O fits small machine panels.
The relay output stage and 100–240 VAC supply make it suitable for controlling starters, solenoids, and indicators in conveyor transfer cells.
Reduces cabinet complexity when controlling discrete devices that benefit from relay isolation and broad AC supply compatibility.
Built-in RS-232C, RS-485, and USB ports enable configuration and data exchange with HMIs, drives, or monitoring devices on compact skids.
Eliminates the need for external communication modules in small systems that require serial integration and local expansion up to 160 points.
