24 VDC compact PLC CPU with 24 DI, 16 NPN DO, 16K steps, 8K words, RS-232C/RS-485/USB, 160-point max expansion.

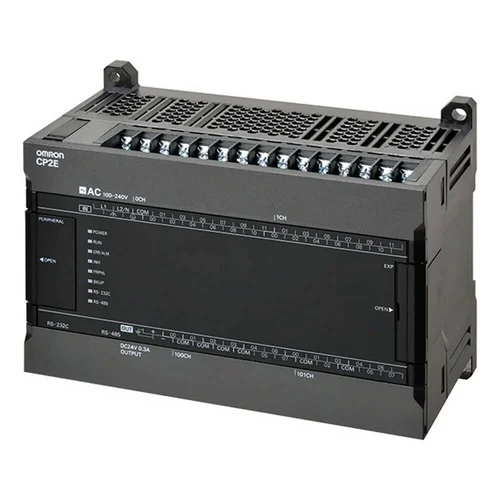

Compact CP2E standard-type PLC CPU unit with 24 VDC supply, 24 digital inputs, 16 NPN digital outputs, 16K-step program capacity, 8K-word data memory, and built-in serial/USB communications. The unit is positioned for small-machine control where compact footprint, onboard I/O, and multiple serial ports are required.
| Parameter | Value |
|---|---|
| Supply voltage type | DC |
| Supply voltage | 24 VDC |
| Number of digital inputs | 24 |
| Input type | PNP/NPN |
| Number of digital outputs | 16 |
| Output type | NPN |
| Program capacity | 16 K steps |
| Data memory capacity | 8 K words |
| Logic execution time | 0.23 µs |
| Communication ports | Serial RS-232C, Serial RS-485, USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | 1 |
| Communication options | CompoBus/S Slave |
| Number of encoder input channels | 6 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 2 |
| Max. pulse output frequency | 100 kHz |
| Max. number of local I/O points | 160 |
| Max. number of expansion units | 3 |
| Operating temperature range | -20 to 60 °C |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 150 mm |
| Product depth (unpacked) | 80 mm |
| Product weight (unpacked) | 605 g |
Used in small machine panels where 24 VDC control power, 24 inputs, 16 outputs, and a compact 150 × 80 × 90 mm footprint are needed.
Reduces panel space while providing enough onboard I/O for discrete machine control without an external remote I/O system.
Fits equipment that must communicate through RS-232C or RS-485 to drives, HMIs, printers, or legacy devices while maintaining local control logic.
Eliminates the need for a separate gateway or serial interface module for basic serial integration.
Suitable for small motion or indexing machines that require pulse outputs up to 100 kHz, encoder feedback channels, and up to 2 PTP axes.
Provides integrated motion-adjacent control for simple positioning without a larger motion controller.
