USD 217.81
Compact 24 VDC PLC CPU with 24 DI, 16 PNP transistor DO, 16K steps, 8K words, and onboard serial/USB communications.

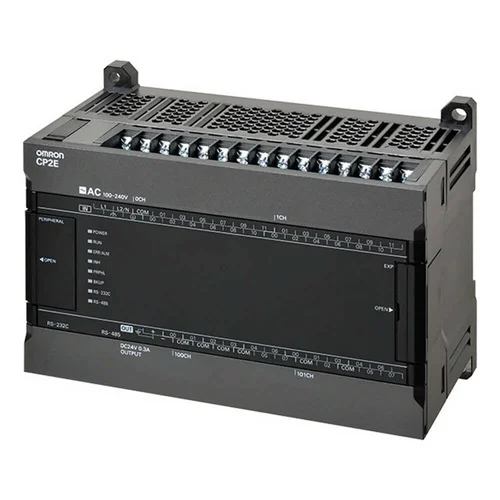

CP2E-S40DT1-D is a compact CP2E-series standard PLC CPU unit with 24 DC inputs, 16 transistor outputs, PNP sourcing output configuration, and 24 VDC supply. It offers 16K steps of program capacity, 8K words of data memory, 0.23 µs logic execution time, and onboard serial/USB communications for machine control and integration. Official Omron documentation also identifies six encoder input channels with 100 kHz maximum encoder input frequency.
| Parameter | Value |
|---|---|
| Supply voltage type | DC |
| Power supply | 24 VDC |
| Number of digital inputs | 24 |
| Input type | PNP/NPN |
| Number of digital outputs | 16 |
| Output type | PNP transistor (sourcing) |
| Program capacity | 16 K steps |
| Data memory capacity | 8 K words |
| Logic execution time | 0.23 µs |
| Communication ports | Serial RS-232C, Serial RS-485, USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | 1 |
| Communication option | CompoBus/S Slave |
| Number of encoder input channels | 6 |
| Max. encoder input frequency | 100 kHz |
Controls a small automated machine with multiple sensors and actuators using 24 DC inputs and 16 transistor outputs from a 24 VDC control cabinet.
Replaces discrete relay logic with programmable sequencing and faster output control in a compact footprint.
Handles position or speed feedback on compact machinery using the onboard encoder input channels with up to 100 kHz input frequency.
Supports pulse counting and index control without requiring a separate high-speed counter module.
Connects industrial devices such as drives, HMIs, printers, or data terminals through RS-232C, RS-485, and USB on a small control platform.
Eliminates external communication adapters in applications needing simple serial interoperability.
