USD 254.15
60-point compact PLC CPU, 100–240 VAC supply, 36 digital inputs, 24 relay outputs, DIN rail mounting.

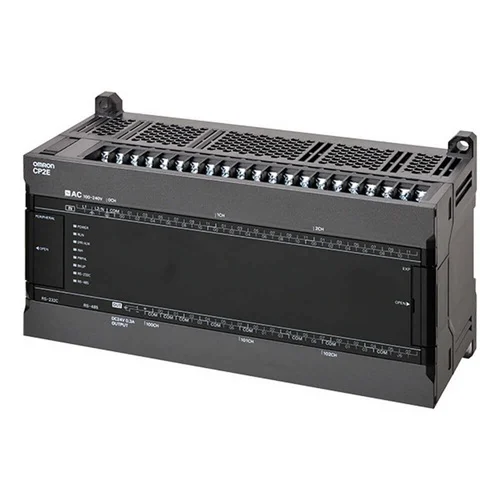

Compact CP2E standard-series CPU unit with 60 built-in I/O points, relay outputs, and 100 to 240 VAC supply. Manufacturer data shows 36 digital inputs and 24 relay outputs, panel-mounted DIN rail installation, built-in Ethernet on the CP2E platform, and a 60-point CPU form factor for small-machine control applications.
| Parameter | Value |
|---|---|
| Supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Built-in I/O points | 60 |
| Digital inputs | 36 |
| Relay outputs | 24 |
| Output type | Relay |
| Mounting type | DIN rail |
| Termination style | Screw terminal |
| Operating temperature | -20°C to 60°C |
| Power consumption | 50 VA/100 VAC max; 70 VA/240 VAC max |
| Inrush current | 120 VAC: 20 A for 8 ms max; 240 VAC: 40 A for 8 ms max |
| Dimensions (H × D × W) | 90 mm × 80 mm × 195 mm |
| Weight | 780 g max |
| External power supply | 24 VDC, 300 mA |
| Communications | Built-in Ethernet; CP2E platform also supports serial communications options |
| Approvals | UL, CSA, CE |
Controls discrete sensors, solenoids, and relays in a compact packaging line where 36 inputs and 24 relay outputs fit a moderate I/O count machine.
Eliminates the need for a larger rack PLC when the machine only needs compact, panel-mounted control with relay-driven loads.
Suitable for a conveyor cell with many photoeyes, pushbuttons, and relay-actuated diverters, using the 60-point CPU footprint and wide AC supply tolerance.
Provides enough onboard I/O to control multiple stations without expansion for simple sorting logic.
Works well in a utility skid or small process panel requiring multiple discrete interlocks and relay isolation for pumps, alarms, and permissives.
Relay outputs simplify direct switching of auxiliary control circuits without external interposing hardware in many cases.
