24 VDC compact PLC with 36 inputs, 24 PNP outputs, 16K steps, RS-232C/RS-485/USB, 100 kHz high-speed control.

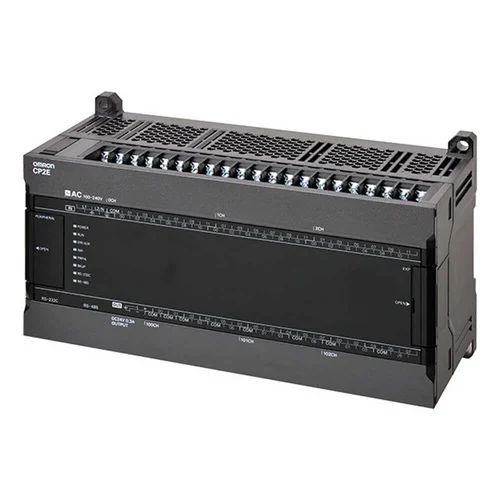

Compact CP2E standard-model PLC with 24 VDC supply, 36 digital inputs, 24 PNP transistor outputs, 16K-step program capacity, 8K-word data memory, RS-232C/RS-485/USB communications, six encoder inputs, and support for up to 180 local I/O points. Omron documents the 60-point CPU unit size as 90 × 80 × 195 mm and weight as 780 g max for the CP2E-S60D family; the product page lists 725 g unpacked for this exact model, so the exact bare-unit weight should be manually confirmed if needed.
| Parameter | Value |
|---|---|
| Supply voltage type | DC |
| Supply voltage | 24 VDC |
| Input type | PNP/NPN |
| Number of digital inputs | 36 |
| Output type | PNP |
| Number of digital outputs | 24 |
| Program capacity | 16 K steps |
| Data memory capacity | 8 K words |
| Logic execution time | 0.23 µs |
| Communication ports | Serial RS-232C, Serial RS-485, USB |
| Ethernet ports | 0 |
| USB ports | 1 |
| RS-232 ports | 1 |
| RS-485 ports | 1 |
| Communication options | CompoBus/S Slave |
| Encoder input channels | 6 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 2 |
| Max. pulse output frequency | 100 kHz |
| Function Block programming | TRUE |
| Battery-free memory backup | TRUE |
| Real-time clock | TRUE |
| Analogue option boards | FALSE |
| Max. number of analogue I/O channels | 24 |
| Max. number of local I/O points | 180 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | -20 to 60 °C |
| Product height (unpacked) | 90 mm |
| Product width (unpacked) | 195 mm |
| Product depth (unpacked) | 80 mm |
| Terminal block | Fixed (not removable) |
| Terminal screw size | M3 |
| Shock resistance | 147 m/s², 3 times in X, Y, and Z directions |
| Applicable standards | EC Directives, KC, UL |
The 36 digital inputs and 24 PNP outputs suit compact machines that need many sensors, solenoids, relays, and indicator outputs in one CPU.
Reduces cabinet footprint while handling dense discrete I/O without a separate remote I/O architecture.
The six encoder inputs, 100 kHz encoder frequency, 100 kHz pulse output, and support for up to two PTP axes make it suitable for indexing stations, small conveyors, and labeling machines.
Enables fast motion feedback and pulse-train control for positioning tasks that exceed low-speed PLC handling.
RS-232C, RS-485, USB, and CompoBus/S slave support allow integration with HMIs, drives, barcode devices, and legacy line equipment in a compact control node.
Provides a single controller for distributed machine coordination and service connectivity without requiring Ethernet.
