20K-step PLC CPU with 5,120 I/O points and 0.02 µs LD execution for CS1 rack systems.

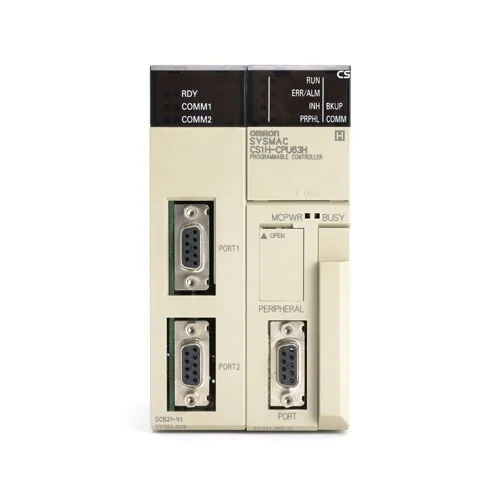

CS1-series PLC CPU unit for Omron CS1 racks. Manufacturer documentation identifies this exact model as a 5,120-point CPU with 20K-step program capacity and 0.02 µs LD instruction execution time. The CS1 family supports expansion-rack architectures and is intended for machine control and information-management applications where deterministic PLC performance and large I/O count are required. Marketing pages confirm current sales status and place it within Omron’s CS1 programmable controller lineup.
| Parameter | Value |
|---|---|
| Number of I/O points | 5,120 |
| Program capacity | 20K steps |
| Data memory capacity | 64K words (DM: 32K words, EM: 32K words × 1 bank) |
| LD instruction execution time | 0.02 µs |
| Expansion racks | Up to 7 |
| Current consumption | 0.78 A |
| Family | CS1 CPU Unit |
| Mounting platform | CS1 CPU Rack |
Controls large discrete sensor and actuator counts across a multi-rack packaging line while maintaining fast ladder execution for interlocks and sequencing.
Handles high point-count machine logic without sacrificing scan-speed determinism.
Coordinates conveyors, pick-and-place stations, and safety interlocks in a distributed cell where many field devices must be managed from one CPU rack.
Consolidates many I/O nodes into a single controller architecture with expansion capacity.
Fits plant skids and utility panels that need a compact central CPU with substantial memory and enough I/O capacity for valves, pumps, alarms, and status feedback.
Provides centralized logic control for complex skid automation with ample program and memory resources.
