16-point sinking transistor PLC output module, 12–24 VDC load range, 0.5 A/point, removable terminal block.

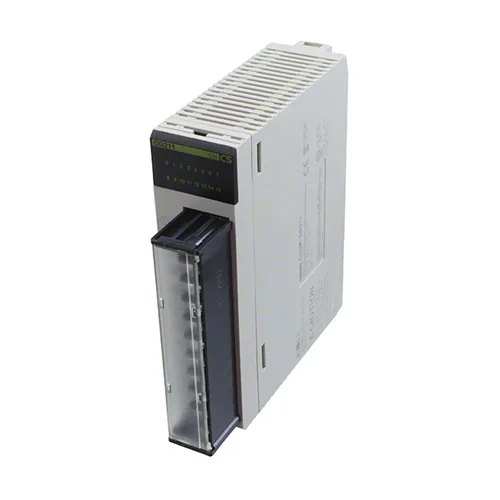

CS1W-OD211 is an Omron CS1-series basic I/O transistor output unit for PLC backplane mounting. It provides 16 sinking DC outputs and is specified for 12 to 24 VDC loads at 0.5 A per point. The official Omron catalog lists a removable terminal block connection style and 8 A per unit maximum switching capacity. DigiKey identifies it as an active CS1W-series output module with screw-terminal termination and 16 solid-state outputs.
| Parameter | Value |
|---|---|
| Output type | Transistor output, sinking |
| Number of outputs | 16 |
| Rated load voltage | 12 to 24 VDC |
| Operating load voltage range | 10.2 to 26.4 VDC |
| Maximum load current per point | 0.5 A |
| Maximum load current per unit | 8.0 A |
| Maximum inrush current | 4.0 A/point, 10 ms max. |
| Connection style | Removable terminal block |
| Mounting type | Backplane |
| Termination style | Screw terminal |
| Series | CS1W |
| Approval agencies | CE, cULus, Lloyd, NK |
| Weight | 0.595 lb (269.89 g) |
Drives up to 16 DC solenoids or valve coils from a PLC backplane, matching the 12 to 24 VDC load class and 0.5 A per-point capability.
Provides compact multi-channel DC switching for pneumatic or hydraulic valve banks without external interposing relays.
Switches multiple 24 VDC pilot lamps, buzzers, or stack-light segments from a single unit while staying within the per-point current limit.
Consolidates discrete status signaling into one output card, reducing panel wiring and relay count.
Controls a set of low-power actuators, sensors with external loads, or machine control devices in a small footprint industrial line controller.
Delivers high channel density for repetitive machine sequences where many DC loads must be switched reliably from one PLC rack slot.
