USD 143.00
32-point sinking transistor output unit, 12–24 VDC rated load, 0.5 A/point, CS1 backplane PLC I/O.

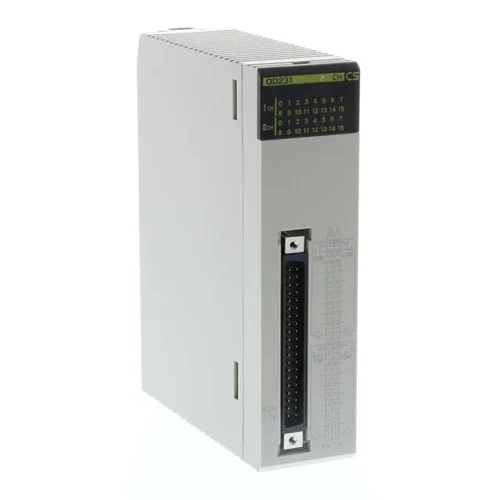

CS1 Basic I/O Unit transistor output module for Omron CS1 PLC systems. The manufacturer page identifies it as a 32-output sinking transistor output unit rated for 12 to 24 VDC. Omron’s engineering documentation and legacy system references show a 0.5 A per point output current, 2.5 A per common, and 5.0 A per unit, with a 10.2 to 26.4 VDC operating load range. The unit is part of the CS1 Basic I/O family and is intended for direct machine output control in CS-series control cabinets.
| Parameter | Value |
|---|---|
| Product type | CS1 Basic I/O Unit, transistor output unit |
| Output points | 32 |
| Output type | Sinking |
| Rated voltage | 12 to 24 VDC |
| Operating load voltage range | 10.2 to 26.4 VDC |
| Maximum load current per point | 0.5 A |
| Maximum load current per common | 2.5 A |
| Maximum load current per unit | 5.0 A |
| Manufacturer certifications | UL, CSA, CE |
Drives multiple 24 VDC solenoids in a compact machine manifold from a single PLC output card, using the 32 sinking channels and 0.5 A point capability.
Simplifies high-density valve control without external relay packs for many low-power DC loads.
Controls grouped 12–24 VDC tower lights, buzzers, and annunciators in industrial panels where many discrete outputs are needed and the current per device stays within the unit limits.
Provides dense discrete output capacity for machine status indication with direct DC switching.
Interfaces a CS1 PLC to numerous small DC actuators such as relays, contactors, and pilot devices when the machine requires many output channels in a control cabinet environment.
Reduces wiring complexity and enables centralized control of many low-current actuators from one output module.
