USD 852.64
64-point 24 VDC sourcing transistor output module; 0.3 A/point, 4 commons, 0.39 A internal consumption, 4-word allocation.

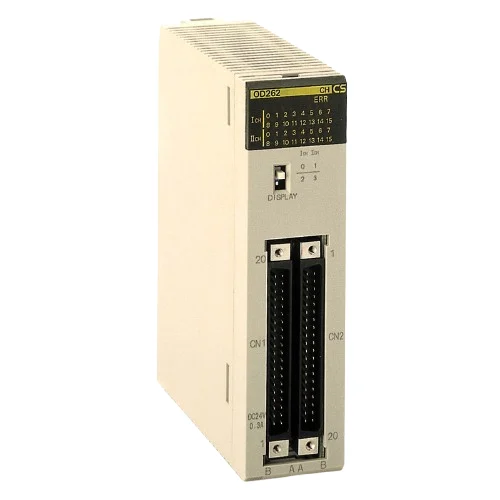

CS1-series basic I/O transistor output unit for the Omron CS1 PLC platform. The datasheet identifies CS1W-OD262 as a 64-point sourcing transistor output module rated for 24 VDC loads at 0.3 A per point, with 64 outputs organized across 4 commons. It mounts on CS1 CPU and expansion backplanes and is compatible with CS1 and CS1H/CS1D system configurations shown in the ordering tables. The module consumes 0.39 A at 5 V internally and uses a 4-word I/O allocation in the CPU memory map. This unit is intended for dense discrete output control in machine automation systems where a high channel count and transistor switching speed are required.
| Parameter | Value |
|---|---|
| Output type | Transistor output unit |
| Outputs | 64 outputs |
| Output form | Sourcing |
| Load voltage | 24 VDC |
| Load current | 0.3 A per point |
| Common count | 4 commons |
| I/O words required | 4 words |
| Current consumption | 0.39 A |
| Mountable racks | CPU Rack; CS1/HG/HE Expansion I/O Rack; CS1 Expansion Rack; CS1 Long-distance Expansion Rack |
| Mountable to SYSMAC BUS Slave Rack | No |
| Applicable mounting in ordering table | CS1 Basic I/O Units |
| Product family | CS1G/H |
Controls many solenoids, diverter gates, and indicator loads from one PLC slot using 64 sourcing transistor outputs at 24 VDC.
Reduces rack space and wiring complexity when a machine needs many discrete outputs in a compact control panel.
Drives a large set of valves, relays, and pilot devices for synchronized packaging stations from a single output module.
Avoids multiple smaller output cards and simplifies expansion in multi-station packaging lines.
Provides dense output capacity for sorters, pushers, and reject mechanisms in a distribution or intralogistics system.
Supports many actuator commands without increasing panel footprint or requiring external output multiplexing.
