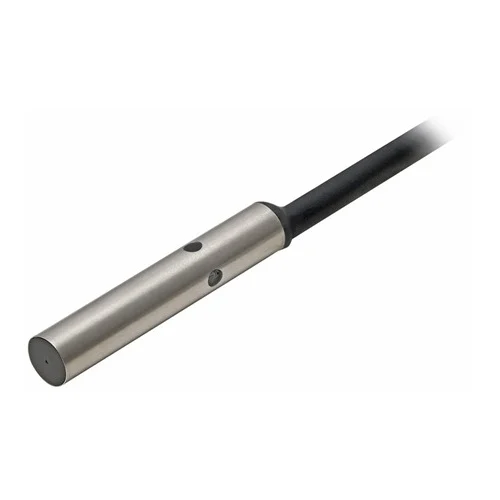

Omron E2E-C06S02-WC-C1 2M is a shielded 6.5 mm inductive sensor with 2 mm sensing, NPN NO output, 2 m cable and IP67 protection.
The Omron E2E-C06S02-WC-C1 2M is a shielded, 6.5 mm cylindrical inductive proximity sensor for ferrous-metal detection at a nominal 2 mm distance. It uses a DC three-wire NPN open-collector, normally open output with a 3 kHz response and a 2 m oil-resistant PVC cable. The sensor operates from 10–30 VDC, has an SUS303 stainless-steel housing, and is rated IP67; Omron currently lists the exact model as selling and standard stock.
A shielded 6.5 mm inductive sensor with 2 mm sensing distance, NPN NO output, 2 m cable and IP67 protection.
| Parameter | Value |
|---|---|
| Sensor type | Inductive proximity sensor; cylindrical, shielded, 6.5 mm diameter |
| Sensing distance | 2 mm ±10%; setting distance 0–1.4 mm |
| Standard target | Iron, 6.5 × 6.5 × 1 mm; ferrous metal (range decreases with non-ferrous metals) |
| Response frequency | 3 kHz |
| Output | DC three-wire NPN open collector, normally open; 200 mA max. (100 mA at 60–70 °C) |
| Power consumption | 10 mA maximum current consumption |
| Power supply | 10–30 VDC, including 10% peak-to-peak ripple |
| Indicator | Yellow operation indicator |
| Operating temperature | −25 to 70 °C |
| Storage temperature | −25 to 70 °C |
| Relative humidity | 35–95% RH, operating and storage |
| Connection | 2 m pre-wired oil-resistant PVC cable; brown +V, black output, blue 0 V |
| IP rating | IP67; oil-resistant to Omron company standard |
| Housing material | SUS303 stainless-steel case; heat-resistant ABS sensing face; PVC cable |
| Physical Weight (kg) | Approx. 0.055 (packaged weight) |
| Dimensions L x W x H (cm) | 3.6 x 0.65 x 0.65 (sensor; cable excluded) |
Engineering suggestions require suitability checks for your installation.
Assembly stations may need a compact non-contact signal when a steel component reaches a fixture or work position.
The shielded 6.5 mm sensor can be mounted flush where the target is within its specified 2 mm sensing range; verify target dimensions and surrounding metal clearances.
Small mechanisms can require a discrete position signal in environments exposed to oil or washdown splashes.
A 2 m oil-resistant cable and IP67 enclosure support installation planning for these conditions, subject to the actual fluid, temperature and cable-routing requirements.
