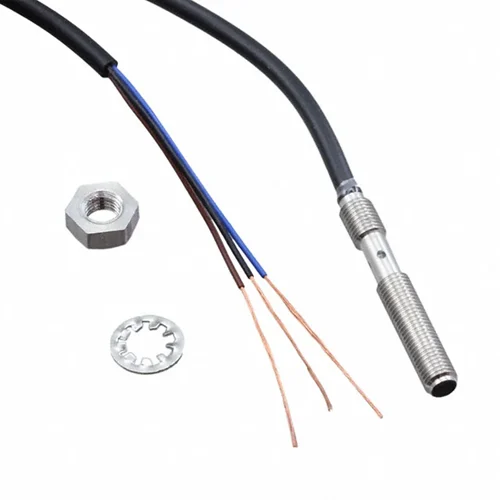

Omron E2E-S04SR8-WC-C1 2M: NPN shielded inductive proximity, 0.8 mm ±10%, 5 kHz response frequency, IP67; oil-resistant per Omron in-house test.
The Omron E2E-S04SR8-WC-C1 2M is a shielded small-diameter inductive proximity sensor with NPN normally open output. It detects ferrous metal at 0.8 mm ±10%, with a 0–0.56 mm setting range and 5 kHz response frequency. The model uses a 2 m oil-resistant PVC cable and carries IP67 protection; current supply status is recorded as Unknown.
A NPN shielded inductive proximity with a rated sensing range of 0.8 mm ±10%.
| Parameter | Value |
|---|---|
| Sensor type | Shielded cylindrical inductive proximity sensor |
| Body size | M4 body |
| Sensing distance | 0.8 mm ±10% |
| Setting distance | 0–0.56 mm |
| Detectable target | Ferrous metal; sensing distance decreases for non-ferrous metals |
| Standard sensing target | Iron, 3 × 3 × 1 mm |
| Differential travel | 15% max. of sensing distance |
| Response frequency | 5 kHz |
| Power supply | 10–30 VDC; 10% p-p ripple included |
| Current consumption | 10 mA max. |
| Output | NPN open collector, normally open; 50 mA max. |
| Residual voltage | 2 V max. |
| Protection circuits | Output and supply reverse-polarity protection; surge suppressor; load short-circuit protection |
| Ambient temperature | Operating/storage −25 to +70 °C; no icing or condensation |
| Ambient humidity | Operating/storage 35–95% RH; no condensation |
| Housing material | SUS303 stainless steel; heat-resistant ABS sensing face; PVC cable |
| Connection | 2 m pre-wired oil-resistant PVC cable |
| Enclosure rating | IP67; oil-resistant per Omron in-house test |
| Physical Weight (kg) | Approx. 0.030 kg packed |
| Dimensions L x W x H (cm) | See Omron dimension drawing; dimensions not transcribed numerically |
| Supply status | Unknown; current manufacturer supply state not established |
Engineering suggestions require suitability checks for your installation.
A fixture may need to detect a ferrous part at a very short repeatable distance in limited space.
Mount the shielded sensor at or within its 0–0.56 mm setting distance and test the actual target alloy, size and alignment.
A compact actuator or mechanism may need a discrete signal when a metal feature reaches a defined position.
Use the normally open NPN output with a compatible input, observing the maximum load and the reduced sensing distance on non-ferrous targets.
