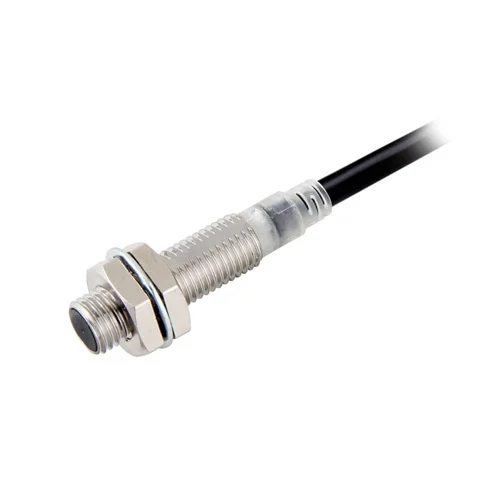

Omron E2E-X1R5C28 2M: M8 shielded / flush inductive sensor, 1.5 mm, NPN NC, 2 m pre-wired cable.
The Omron E2E-X1R5C28 2M is a shielded / flush E2E inductive proximity sensor in a M8 cylindrical body, with a rated sensing distance of 1.5 mm. It uses a NPN DC three-wire output in NC operation and connects by 2 m pre-wired cable. Omron specifies 10–30 VDC and IP67 protection for this E2E configuration; verify the target material, mounting clearances and controller input before installation.
M8 Omron E2E shielded / flush inductive sensor with 1.5 mm range and NPN NC output.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2E |
| Product type | Shielded / flush inductive proximity sensor |
| Sensing method | Inductive |
| Sensing distance | 1.5 mm |
| Mounting | Shielded / flush |
| Output | NPN DC three-wire |
| Operation mode | NC |
| Connection | 2 m pre-wired cable |
| Thread size | M8 |
| Rated supply voltage | 10 to 30 VDC |
| Degree of protection | IP67 |
| Standard cable length | 2 m |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
| Supply status | Unknown; exact specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Detect a metal target at a machine station before an automated operation.
Set the sensor within its rated 1.5 mm range and use the NPN NC signal with a compatible controller input.
Provide a non-contact switching point for a fixture or metal target.
Use the 2 m pre-wired cable and verify target material and installation clearances against Omron's E2E requirements.
