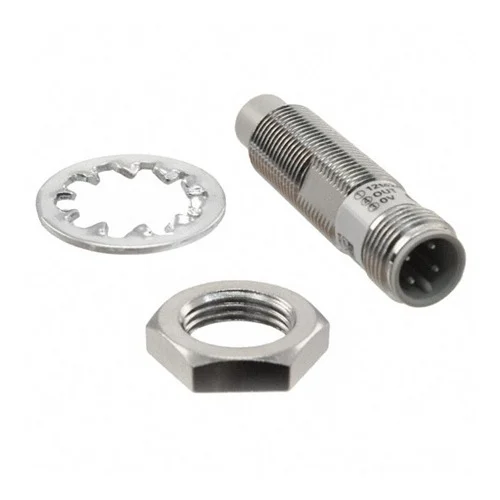

Omron E2E-X5MF1-M1-Z: M12 unshielded / non-flush inductive sensor, 5 mm, PNP NO, M12 connector.
The Omron E2E-X5MF1-M1-Z is a unshielded / non-flush E2E inductive proximity sensor in a M12 cylindrical body, with a rated sensing distance of 5 mm. It uses a PNP DC three-wire output in NO operation and connects by M12 connector. Omron specifies 10–30 VDC and IP67 protection for this E2E configuration; verify the target material, mounting clearances and controller input before installation.
M12 Omron E2E unshielded / non-flush inductive sensor with 5 mm range and PNP NO output.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2E |
| Product type | Unshielded / non-flush inductive proximity sensor |
| Sensing method | Inductive |
| Sensing distance | 5 mm |
| Mounting | Unshielded / non-flush |
| Output | PNP DC three-wire |
| Operation mode | NO |
| Connection | M12 connector |
| Thread size | M12 |
| Rated supply voltage | 10 to 30 VDC |
| Degree of protection | IP67 |
| Cable length | Not applicable; connector model |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
| Supply status | Unknown; exact specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Detect a metal target at a machine station before an automated operation.
Set the sensor within its rated 5 mm range and use the PNP NO signal with a compatible controller input.
Provide a non-contact switching point for a fixture or metal target.
Use the M12 connector and verify target material and installation clearances against Omron's E2E requirements.
