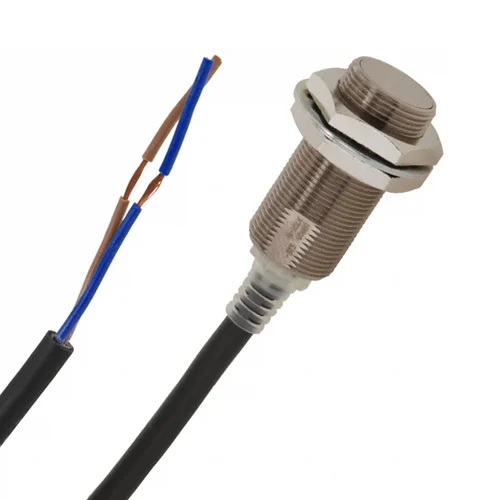

Omron E2E-X7D1-N 2M: M18 shielded 7 mm ±10% DC 2-wire NO proximity sensor with 0.5 kHz response, 2 m cable and IP67.
The Omron E2E-X7D1-N 2M is a shielded DC 2-wire inductive proximity sensor with NO switching and a 7 mm ±10% sensing distance. It detects ferrous targets at the manufacturer's 0–5.6 mm setting range, supports a 3–100 mA load, and connects through a 2 m Oil-resistant PVC cable. Its specifications list IP67 protection; current supply status is recorded as Unknown.
A DC 2-wire dc 2-wire inductive proximity with a rated sensing range of 7 mm ±10%.
| Parameter | Value |
|---|---|
| Sensor type | Shielded DC 2-wire inductive proximity sensor |
| Body size | M18 × 55 mm body |
| Sensing distance | 7 mm ±10% |
| Setting distance | 0–5.6 mm |
| Differential travel | 15% max. of sensing distance |
| Detectable object | Ferrous metal; sensing distance decreases with non-ferrous targets |
| Standard sensing object | Iron, 18 × 18 × 1 mm |
| Response frequency | 0.5 kHz |
| Power supply | 12–24 VDC (10% p-p ripple included), Class 2 |
| Leakage current | 0.8 mA max. |
| Load current | 3 to 100 mA |
| Residual voltage | 3 V max. at 100 mA with 2 m cable (polarized model) |
| Operation mode | NO (DC 2-wire) |
| Indicators | D1: orange operation indicator and green setting indicator; D2: orange operation indicator only |
| Protection circuits | Surge suppressor and load short-circuit protection |
| Ambient temperature | Operating −25 to +70 °C; storage −40 to +85 °C; no icing or condensation |
| Ambient humidity | Operating/storage 35–95% RH; no condensation |
| Enclosure rating | IP67; IP67G and IP69K per Omron specification; oil-resistant evaluation to 35 °C |
| Connection | 2 m pre-wired Oil-resistant PVC cable |
| Housing material | Nickel-plated brass case; PBT sensing surface; Oil-resistant PVC cable |
| Weight packed | Approx. 70 g |
| Physical Weight (kg) | Not specified; Omron lists packed-state weight separately |
| Dimensions L x W x H (cm) | M18 × 55 mm body; consult Omron's drawing for complete L × W × H dimensions |
| Supply status | Unknown; current manufacturer supply state not established |
Engineering suggestions require suitability checks for your installation.
A fixture may need a non-contact signal when a ferrous component reaches a repeatable position.
Set the sensor within its 0–5.6 mm range and verify the target material, switching distance and NO controller logic.
A compact cylindrical proximity sensor can monitor a metal target where physical contact would add wear.
Connect the two-wire output to a compatible load within 3 to 100 mA, allowing for 0.8 mA max. off-state leakage and the stated residual voltage.
