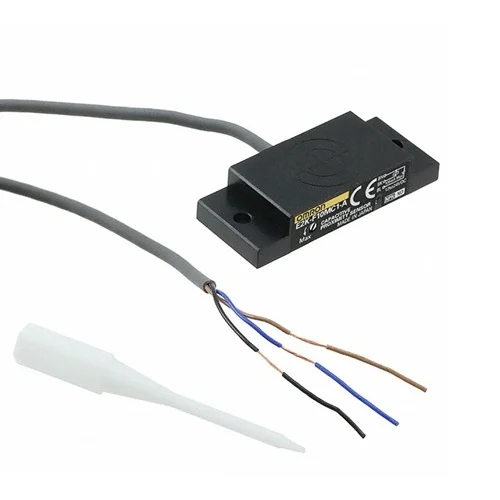

Omron E2K-F10MC1-A 2M: f capacitive sensor, 10 mm (adjustable 4 to 10 mm) sensing, NPN open collector, 100 mA max. output, flat proximity mode, 2 m cable.
The Omron E2K-F10MC1-A 2M is an E2K-F flat capacitive proximity sensor with 10 mm (adjustable 4 to 10 mm) sensing capability. It provides NPN open-collector output in NO operation and is supplied with a 2 m cable. Omron specifies 12–24 VDC nominal supply, IP66 protection, 100 Hz response and a 10 mm flat profile. Verify target material and sensing adjustment in the application.
Omron E2K F capacitive sensor with 10 mm (adjustable 4 to 10 mm) sensing and NPN open collector, 100 mA max. flat proximity output.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E2K-F |
| Product type | flat capacitive proximity sensor |
| Sensing method | Capacitive |
| Sensing distance | 10 mm (adjustable 4 to 10 mm) |
| Output | NPN open collector, 100 mA max. |
| Operation mode | flat proximity |
| Connection | 2 m pre-wired cable |
| Rated supply voltage | 12 to 24 VDC (10 to 30 VDC) |
| Degree of protection | IP66 |
| Body profile | Flat; 10 mm thickness |
| Set distance | 0 to 7.5 mm |
| Response frequency | 100 Hz |
| Operating temperature | -10 to 55°C |
| Ambient humidity | 35 to 95% RH |
| Packed weight | Approx. 35 g |
| Housing material | Heat-resistant ABS |
| Cable length | 2 m |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
| Supply status | Unknown; exact specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Detect a target at a machine station before an automated operation.
Set the sensor within the specified 10 mm (adjustable 4 to 10 mm) sensing range and connect its NPN open collector, 100 mA max. flat proximity output to a compatible controller.
Provide a non-contact signal for material or process presence.
Confirm the material, mounting conditions and sensing response in the installed application.
