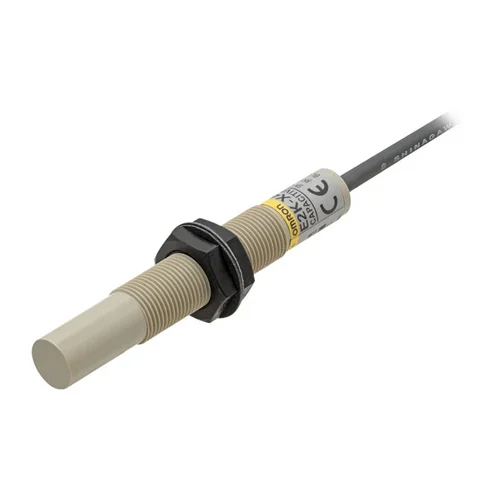

Omron E2K-X4ME2 2M: M12 capacitive sensor, 4 mm sensing, NPN output, NC, 2 m cable.
The Omron E2K-X4ME2 2M is a threaded M12 non-shielded capacitive proximity sensor with 4 mm rated sensing distance. This variant has NPN three-wire DC output and NC switching. It operates from 12–24 V DC nominally and can detect conductive and dielectric targets.
Omron E2K-X4ME2 2M: M12 capacitive sensor, 4 mm sensing, NPN output, NC, 2 m cable.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Capacitive proximity sensor, cylindrical threaded type |
| Sensing head size | M12 |
| Shielding | Non-shielded |
| Sensing distance | 4 mm ±10% |
| Setting distance | 0–2.8 mm |
| Detectable materials | Conductive and dielectric objects |
| Output | NPN, three-wire DC |
| Operation mode | NC |
| Power supply | 12–24 V DC nominal; operating range 10–30 V DC |
| Current consumption | 15 mA max. |
| Output load | 200 mA max. |
| Response frequency | 100 Hz |
| Residual voltage | 2 V max. at 200 mA, 2 m cable |
| Connection | 2 m cable |
| Protection | Not stated in the checked family specifications |
| Physical Weight (kg) | Not stated in the checked manufacturer source. |
| Dimensions L x W x H (cm) | Overall dimensions not stated in the checked manufacturer source. |
Engineering suggestions require suitability checks for your installation.
Detect plastic, liquid or other dielectric targets at a machine station.
Set sensing distance against the actual target material and size, then confirm switching margin.
Monitor material presence through a non-metallic container wall where the installation permits capacitive sensing.
Validate wall thickness, target dielectric properties and installation spacing before use.
