USD 25.44

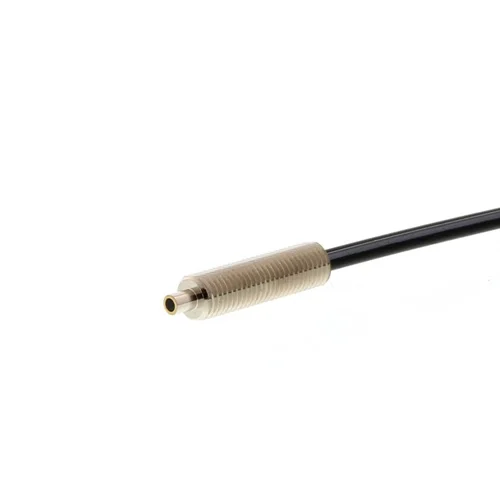

Omron E32-ZC200 2M is an M6 coaxial reflective fiber head with 2 m cable, IP67 protection, and R25 minimum bend radius.
The Omron E32-ZC200 2M is a coaxial reflective fiber optic sensor head with an M6 mount, a straight sensing face and 2 m plastic fiber. Omron’s E3X-HD catalog lists the model with IP67 protection and sensing distances up to 1,400 mm in standard mode or 400 mm in high-speed mode using that compatible amplifier; reflective ranges use white paper as the reference target. The fiber family specifies an R25 minimum bend radius and -40 to +70°C operating range. Exact model specifications are available in the manufacturer catalog, while current sales status is not established.
An M6 coaxial reflective fiber head with 2 m cable for Omron fiber amplifiers.
| Parameter | Value |
|---|---|
| Product type | Reflective fiber optic sensor head |
| Sensing method | Reflective |
| Head style | Coaxial reflective; straight; M6 threaded |
| Sensing distance | With E3X-HD amplifier: up to 1,400 mm standard mode; 400 mm high-speed mode; white paper reference target |
| Optical fiber | Plastic core; polyethylene sheath |
| Cable length | 2 m |
| Minimum bend radius | 25 mm |
| Protection rating | IP67 |
| Operating temperature | -40 to +70°C (E32 family) |
| Compatible amplifier | Omron E3X-HD; verify the amplifier model and mode for the required sensing range |
| Physical Weight (kg) | Not stated in the manufacturer product specification. |
| Dimensions L x W x H (cm) | See the Omron E32-ZD200 dimensional drawing; no overall L × W × H value is stated in the checked catalog. |
| Supply status | Unknown; manufacturer specifications are confirmed, but current sales status was not established. |
Engineering suggestions require suitability checks for your installation.
A coaxial fiber arrangement can help reduce alignment effects when sensing small or irregular targets.
Install the M6 head coaxial to the target and tune the compatible amplifier; verify the actual target surface, range and operating mode.
The straight head and flexible routing can support optical sensing where a conventional sensor body is difficult to fit.
Route the 2 m fiber without exceeding its 25 mm minimum bend radius and confirm environmental fit with the IP67 head rating.
