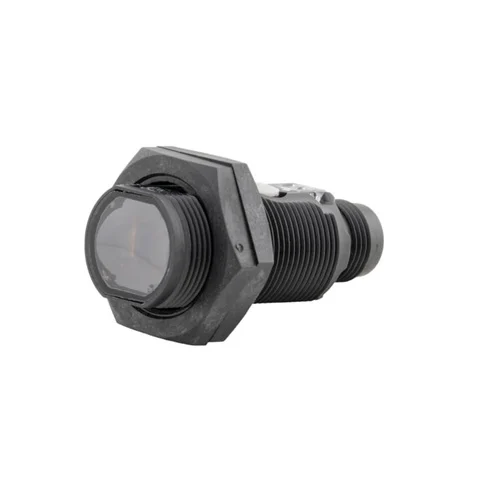

Omron E3FA-RN21: retro-reflective with msr, 0.1 to 4 m with E39-R1S, NPN output, M12 connector.
The Omron E3FA-RN21 is an E3FA retro-reflective with msr photoelectric sensor with a nominal sensing distance of 0.1 to 4 m with E39-R1S. This M12 connector model uses Red LED, 624 nm and NPN open-collector output; the through-beam version is a matched emitter and receiver set. Omron specifies 10–30 VDC, 0.5 ms response and IP67/IP69K protection. E39-R1S reflector required and ordered separately Confirm target characteristics and controller compatibility for the installation.
M18 Omron E3FA retro-reflective with msr sensor with 0.1 to 4 m with E39-R1S range, NPN output and M12 connection.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E3FA |
| Product type | M18 photoelectric sensor |
| Sensing method | Retro-reflective with MSR |
| Sensing distance | 0.1 to 4 m with E39-R1S |
| Output | NPN open collector |
| Connection | M12 connector |
| Housing material | ABS plastic |
| Light source | Red LED, 624 nm |
| Operation mode | Light-ON / Dark-ON selectable by wiring |
| Response time | 0.5 ms |
| Rated supply voltage | 10 to 30 VDC |
| Maximum load current | 100 mA |
| Degree of protection | IP67/IP69K |
| Sensor-only weight | Approx. 10 g |
| Required reflector | E39-R1S reflector required and ordered separately |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
| Supply status | Unknown; exact specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Detect products as they pass a machine or conveyor sensing point.
Position the retro-reflective with msr sensor within its rated 0.1 to 4 m with E39-R1S range and connect the NPN output to a compatible input.
Provide a photoelectric switching point for counting or sequence confirmation in an automated station.
Use the M12 connector and red led, 624 nm configuration; verify any specified reflector and set Light-ON or Dark-ON logic by wiring.
