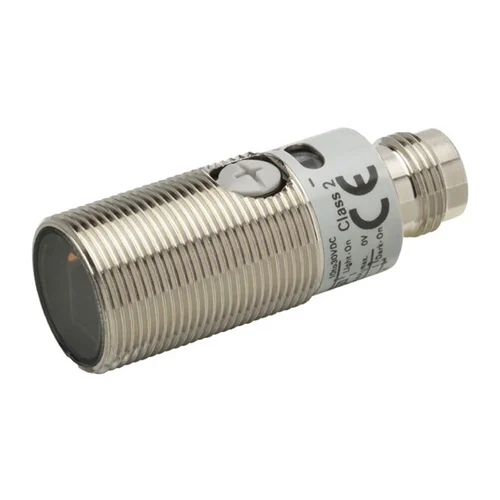

Omron E3FB-DN22 M18 E3FB diffuse-reflective sensor with 300 mm sensing range, NPN output and M12 connector.
The Omron E3FB-DN22 is an E3FB diffuse-reflective photoelectric sensor for industrial object detection. The M18 nickel-brass housing and red LED support a 300 mm sensing range. This model uses M12 connector and NPN output. Verify target conditions, installation alignment and the receiver wiring before use.
M18 E3FB diffuse-reflective sensor with 300 mm range, NPN output and M12 connector.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E3FB |
| Product type | M18 photoelectric sensor |
| Sensing method | Diffuse-reflective |
| Sensing distance | 300 mm |
| Output | NPN |
| Connection | M12 connector |
| Thread size | M18 |
| Housing material | Nickel-brass |
| Light source | Red LED, 624 nm |
| Operation mode | Light-ON / Dark-ON, selected by wiring |
| Response time | 0.5 ms |
| Rated supply voltage | 10 to 30 VDC |
| Degree of protection | IP67/IP69K |
| Reflector | Not required |
| Supply status | Unknown; exact model configuration is listed in Omron data, current supply status was not established. |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
Engineering suggestions require suitability checks for your installation.
Detect passing objects or workpieces on a production conveyor.
Use the specified diffuse or through-beam arrangement and set the sensing point within the rated range.
Provide a photoelectric switching point for counting or presence monitoring.
Connect the NPN receiver output to a compatible input and select Light-ON or Dark-ON wiring.
