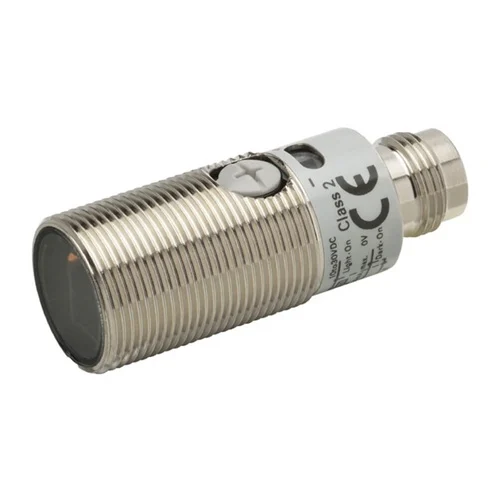

Omron E3FB-DP23: 1 m industrial sensor, PNP output, M12 connector.
The Omron E3FB-DP23 is an E3FB M18 diffuse-reflective photoelectric sensor with a nominal sensing distance of 1 m. It uses PNP open-collector output and a M12 connector. The nickel-brass housing, 624 nm red LED and 0.5 ms response support industrial object detection. Light-ON or Dark-ON operation is selected by wiring; confirm reflector, target and receiver compatibility for the installation.
Omron E3FB-DP23 M18 Diffuse-reflective Photoelectric Sensor with 1 m sensing distance, PNP output and M12 connector.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Series | E3FB |
| Product type | M18 photoelectric sensor |
| Sensing method | Diffuse-reflective |
| Sensing distance | 1 m |
| Output | PNP open collector |
| Connection | M12 connector |
| Thread size | M18 |
| Housing material | Nickel-brass |
| Light source | Red LED, 624 nm |
| Operation mode | Light-ON / Dark-ON, selected by wiring |
| Response time | 0.5 ms |
| Rated supply voltage | 10 to 30 VDC |
| Degree of protection | IP67/IP69K |
| Reflector | Not required |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | See manufacturer dimensional data; no complete overall L × W × H value stated. |
| Supply status | Unknown; exact specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Detect passing objects or workpieces at a fixed point on a production conveyor.
Set the diffuse-reflective sensor within its rated 1 m range and match the PNP output to a compatible controller input.
Provide a photoelectric switching point for counting or presence monitoring in an automated machine.
Use the specified m12 connector and select Light-ON or Dark-ON wiring for the required logic.
