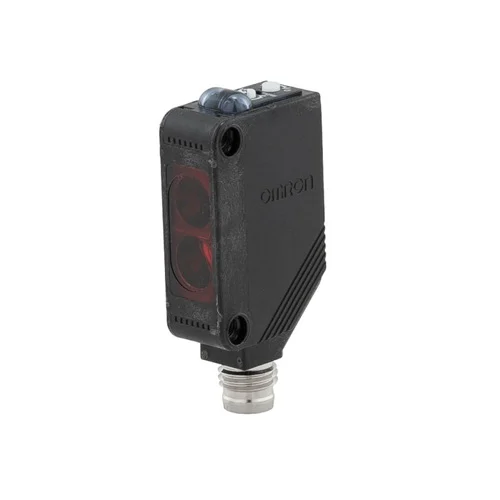

Omron E3Z-B86: clear-object retro-reflective sensor, 80–500 mm, PNP output.
The Omron E3Z-B86 is a compact photoelectric sensor with a built-in amplifier for transparent-object detection. It uses retro-reflective sensing and has a 80–500 mm sensing range. This version has PNP output and M8 connector; the E3Z family uses a 12–24 V DC supply and IP67 enclosure.
Omron E3Z-B86: clear-object retro-reflective sensor, 80–500 mm, PNP output.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Compact photoelectric sensor with built-in amplifier |
| Sensing method | Transparent-object retro-reflective |
| Sensing distance | 80–500 mm |
| Output type | PNP open collector |
| Light source | Red LED, 660 nm |
| Power supply | 12–24 V DC ±10% |
| Current consumption | 30 mA max. |
| Response time | 1 ms max. |
| Operation mode | Light-ON / Dark-ON selectable |
| Connection | M8 connector |
| Degree of protection | IP67 |
| Operating temperature | -25 to 55°C |
| Physical Weight (kg) | Not stated in the checked Omron source. |
| Dimensions L x W x H (cm) | Overall dimensions not stated in the checked Omron source. |
Engineering suggestions require suitability checks for your installation.
Detect clear bottles or transparent packages moving through a compact machine station.
Pair the sensor with the specified reflector where required, and validate the target, alignment and 80–500 mm range on the installed machine.
Monitor package passage at a conveyor or packaging station.
Select Light-ON or Dark-ON logic and confirm electrical and optical conditions during commissioning.
