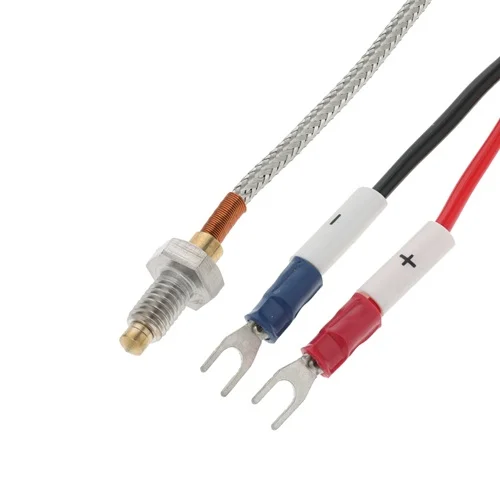

Omron E52-CA1DY M6 4M K-type thermocouple with grounded junction, M6 threaded mounting and 4 m lead for contact temperature sensing.
The Omron E52-CA1DY M6 4M is a low-cost K-type (CA) thermocouple with a grounded sensing junction and SUS304 protective tubing. It uses a 0.65 mm single-wire element, an M6 screw fitting and a 4 m glass-wool-covered, copper-shielded lead with an M3.5 Y-type crimp terminal. Omron specifies a 0°C to 400°C range for the K-type element; the lead is rated to 180°C, and the sensor is not airtight.
Grounded K-type thermocouple with M6 mounting, 4 m shielded lead and 0°C to 400°C sensing range.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Low-cost K-type thermocouple temperature sensor |
| Element type | K (CA) |
| Element construction | 0.65 mm single wire |
| Temperature range | 0°C to 400°C |
| Thermal contact | Grounded type |
| Protective tubing | SUS304; M6 screw fitting |
| Lead wire | 4 m; glass-wool-covered with external copper shield; 0°C to 180°C |
| Terminal | Y-type crimp terminal for M3.5 |
| Construction note | Not airtight; Omron recommends the tip touch the sensing object |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | Overall L × W × H not stated; 4 m lead and M6 fitting. |
| Supply status | Unknown; exact model and specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Monitor a heated block, pipe wall or metal fixture that can accept an M6 threaded sensor fitting.
Install the probe with firm tip contact and connect its K-type output to a compatible thermocouple input; verify temperature limits and grounding compatibility.
Track temperature at a machine surface or fixture where a threaded probe can be installed.
Route the 4 m shielded lead to a compatible controller and keep lead exposure within Omron’s 180°C limit.
