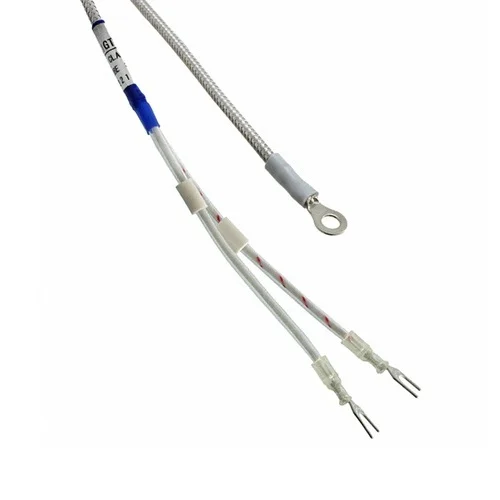

Omron E52-CA1GTY 1M K-type thermocouple with grounded junction, M3.5 Y-type crimp terminal and 1 m shielded lead.
The Omron E52-CA1GTY 1M is a K-type (CA) thermocouple with a 0.65 mm single-wire element and grounded thermal contact. It measures within a manufacturer-specified range of 0°C to 300°C and uses a 1 m glass-covered, stainless-steel-shielded lead rated to 150°C. The lead terminates in an M3.5 Y-type crimp terminal; the manufacturer's drawing also shows an M4 round crimp terminal at the sensing end.
Grounded K-type thermocouple with a 1 m shielded lead and M3.5 Y-type crimp terminal.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Thermocouple with crimp terminal |
| Element type | K (CA) |
| Element construction | 0.65 mm single wire; Class 2 (0.75) |
| Temperature range | 0°C to 300°C |
| Thermal contact | Grounded type |
| Lead wire | 1 m glass-covered, stainless-steel-shielded thermocouple wire; 0°C to 150°C |
| Terminal shape | Y-type crimp terminal for M3.5; drawing also shows M4 round terminal |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | Overall L × W × H not stated; dimensional drawing is provided by Omron. |
| Supply status | Unknown; exact model and specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Connect a thermocouple at a machine zone to an instrument with a compatible K-type input.
Use the M3.5 Y-type terminal at a compatible connection point and validate polarity, grounding and lead temperature exposure.
Sense temperature at a heated fixture or industrial assembly where a grounded probe junction is suitable.
Select the mounting arrangement to suit the fixture and keep the shielded lead within its 150°C temperature rating.
