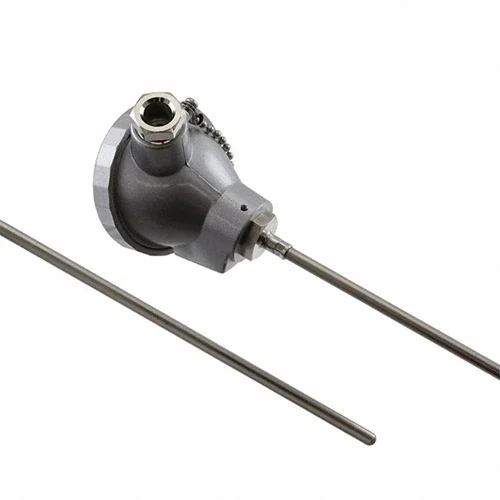

Omron E52-P20C-N D=8 Pt100 resistance thermometer with 20 cm, 8 mm ASTM316L sheath and enclosed terminals.
The Omron E52-P20C-N D=8 is a sheathed Pt100 resistance thermometer with enclosed terminals, a 20 cm protective tube and an 8 mm tube diameter. The element uses a three-conductor system with Class B accuracy and an ASTM316L protective tube. Omron specifies an operating measurement range of −196°C to 450°C; the terminal box has a permissible temperature of 0°C to 90°C.
Class B Pt100 thermometer with 20 cm × 8 mm ASTM316L sheath and enclosed terminals.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Sheathed platinum resistance thermometer |
| Element type | Pt100 |
| Conductor system | 3-conductor |
| Accuracy class | Class B |
| Temperature range | −196°C to 450°C |
| Protective tubing | ASTM316L |
| Protective tube length | 20 cm |
| Protective tube diameter | 8 mm |
| Terminal type | Enclosed terminals; terminal box permissible temperature 0°C to 90°C |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | Overall L × W × H not stated; protective tube is 20 cm long and 8 mm diameter. |
| Supply status | Unknown; exact model and specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Measure temperature in a process where an enclosed-terminal sheathed probe can be installed into a suitable thermowell or vessel connection.
Confirm the process connection, immersion depth, pressure and chemical compatibility, then wire the Pt100 using its three-conductor arrangement.
Provide resistance-temperature feedback for a vessel, machine or controlled process over a broad temperature span.
Connect to a compatible RTD input and keep the terminal box within its 0°C to 90°C permissible temperature.
