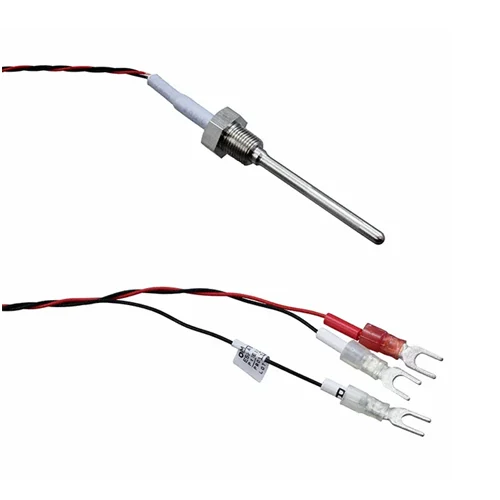

Omron E52-P6DY 2M Class B Pt100 sensor with 30 mm SUS304 probe, three-conductor output and 2 m PFA lead.
The Omron E52-P6DY 2M is a low-cost Pt100 resistance thermometer with a Class B element and three-conductor connection. It has a 30 mm SUS304 sensing section and measures from −50°C to 250°C. Its 2 m PFA-covered lead is specified for −50°C to 150°C, making this probe suitable for compatible temperature-controller inputs when the process, mounting and wiring are checked.
Class B Pt100 probe with 30 mm SUS304 sensing section and 2 m PFA lead.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Low-cost platinum resistance thermometer |
| Element type | Pt100 |
| Conductor system | 3-conductor |
| Accuracy class | Class B |
| Temperature range | −50°C to 250°C |
| Protective tubing | SUS304 |
| Sensor length | 30 mm |
| Lead wire | 2 m PFA-covered wire; −50°C to 150°C |
| Physical Weight (kg) | Not stated in the checked manufacturer product data. |
| Dimensions L x W x H (cm) | Overall L × W × H not stated; sensing section is 30 mm long. |
| Supply status | Unknown; exact model and specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Read equipment or fixture temperature with a short probe connected to an RTD-capable controller.
Mount the 30 mm sensing section for representative contact and wire all three conductors to the specified Pt100 input.
Monitor a nearby process surface or shallow insertion point within the probe's specified range.
Check the mounting method and process conditions, and keep lead-wire temperature within the −50°C to 150°C rating.
