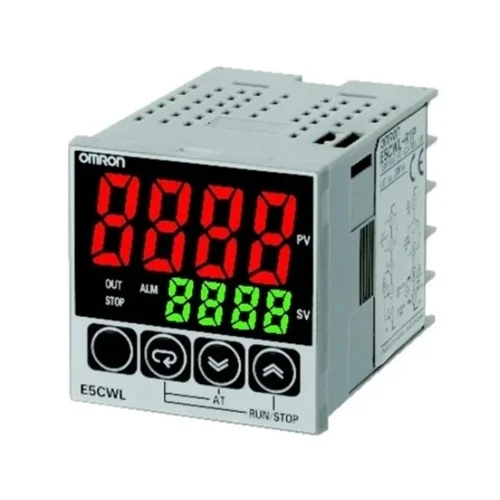

Omron E5CWL-R1TC AC100-240 Temperature Controller 1/16 DIN

Technical Overview

The Omron E5CWL-R1TC AC100-240 is a compact 1/16 DIN temperature controller engineered for precise and reliable thermal regulation in industrial environments. Utilizing a fast 250 ms sampling rate and Omron's proven 2-PID auto-tuning algorithm, it minimizes overshoot and easily manages short cycle times. The unit accommodates various thermocouple inputs (Types J, K, R, S, T) and provides a 3 A relay control output alongside a 1 A alarm output. Designed for ease of use, it features a dual 4-digit LED display with high visibility and an ultra-shallow 60 mm mounting depth, making it an excellent solution for space-constrained panels in packaging, molding, and process automation applications.

Key Features

Fast 250 ms sampling period for highly responsive temperature control
Compact 1/16 DIN form factor with an ultra-shallow 60 mm depth behind the panel
Dual 4-digit LED display with a large 16.2 mm character height for the process value (PV)
Supports ON/OFF control or 2-PID control with built-in auto-tuning algorithm
Versatile sensor compatibility with thermocouple Types J, K, R, S, and T
Features one 3A SPST-NO control relay output and one 1A SPST-NO alarm relay output
Simplified setup parameters designed for rapid commissioning and operation

Technical Specification Matrix

Parameter	Value
Input Type	Thermocouple (Types J, K, R, S, T)
Control Output	Relay output (SPST-NO), 250 VAC, 3 A (resistive load)
Alarm Output	One relay output (SPST-NO), 250 VAC, 1 A (resistive load)
Control Method	ON/OFF or 2-PID control with auto-tuning
Sampling Period	250 ms
Indication Accuracy	±0.5% of process value or ±1°C, whichever is greater
Power Supply Voltage	100 to 240 VAC, 50/60 Hz
Power Consumption	3.5 VA max
Dimensions	1/16 DIN (48 mm × 48 mm × 60 mm)
Operating Temperature	-10°C to +55°C (no icing or condensation)
Storage Temperature	-25°C to +65°C
Operating Humidity	25% to 85% RH
Protection Rating	IP50 (front panel)

Industrial Applications

1. Plastic Injection Molding Die Temperature Regulation

After opening the molding die tool and ejecting the plastic part, the temperature decreases rapidly. The E5CWL-R1TC uses its fast 250 ms sampling time and 2-PID control with auto-tuning to quickly restore the die to stable thermal conditions without overshooting.

Problem Solved

Prevents temperature fluctuations that cause warping, material degradation, or inconsistent curing in plastic parts during short injection cycles.

250 ms sampling2-PID controlauto-tuningthermocouple inputrelay output

2. Industrial Packaging and Sealing Machines

In high-speed packaging, heat is drawn away from the sealing jaws every time they clamp onto a product. The compact 1/16 DIN controller actively monitors the temperature drop via a thermocouple and switches the 250VAC 3A relay output to instantly drive the heating elements.

Problem Solved

Eliminates weak, inconsistent, or melted seals by instantly reacting to thermal drops with rapid sampling and precise relay actuation.

1/16 DIN sizerelay output 3A250 ms sampling rateSPST-NOIP50 front panel

3. Thermal Stability in Laboratory Ovens

Maintaining precise internal temperatures for stress-testing components is critical. The controller utilizes its high ±0.5% indication accuracy and dual LED display to monitor the Process Value, driving heating elements smoothly via its PID algorithm to maintain strict thermal boundaries.

Problem Solved

Resolves imprecise heating controls and severe overshoot issues in testing chambers, ensuring highly repeatable and compliant testing environments.

±0.5% indication accuracydual 4-digit LED displayPID algorithm100-240 VAC power supply
