Omron ES1B 60-120C Infrared Thermosensor

Technical Overview

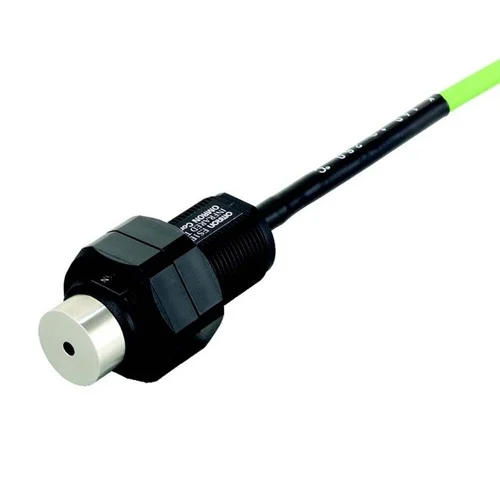

The Omron ES1B 60-120C is a highly reliable, non-contact infrared thermosensor designed to provide an accurate and cost-effective alternative to traditional contact thermocouples. Operating over a temperature range of +60°C to +120°C, it outputs an electromotive force identical to a standard K-type thermocouple, allowing seamless integration with existing temperature controllers. Encased in an M18 threaded ABS resin housing with an IP65 protection rating, it boasts a rapid 300 ms response time. Its non-contact measurement mechanism prevents mechanical deterioration, making it an ideal sensing solution for food processing, packaging, molding, and electronics manufacturing applications.

Key Features

Non-contact infrared temperature measurement from +60°C to +120°C [1.1]
Electromotive output behaves like a standard K-type thermocouple
High-speed 300 ms response time for a 63% response
IP65-rated M18 threaded barrel ABS resin casing
Operates on a 12 VDC to 24 VDC power supply
Includes a 3-meter PVC-covered compensating conductor cable with shield wire
Immune to physical deterioration compared to traditional contact thermocouples

Technical Specification Matrix

Parameter	Value
Measurement Range	+60°C to +120°C [1.1]
Output Type	K-type Thermocouple Equivalent
Supply Voltage	12 to 24 VDC
Current Consumption	20 mA max.
Response Time	300 ms (63% response)
Housing	M18 Threaded Barrel, ABS Resin
IP Rating	IP65
Cable Length	3 m
Measurement Wavelength	6.5 to 14.0 μm
Operating Temperature	-25°C to +70°C

Industrial Applications

1. Packaging Heat Seal Temperature Regulation

In high-speed packaging machinery, heat sealing jaws and rollers must maintain specific temperatures for airtight seals. The Omron ES1B safely monitors these moving surfaces non-invasively, transmitting real-time data back to the machine's PID controller using its built-in K-type thermocouple equivalent output [1.3].

Problem Solved

Eliminates the mechanical wear and frequent replacements associated with contact thermocouples on rapidly moving machine parts.

Heat SealingM18 Threaded [1.1]K-type OutputPID IntegrationNon-Contact Sensing

2. Food Processing Conveyor Monitoring

During continuous baking or drying processes, organic products move along conveyors where contact sensors cannot be used. The ES1B accurately reads surface temperatures between +60°C and +120°C, ensuring optimal processing conditions without physical interference.

Problem Solved

Prevents product contamination and sensor degradation while ensuring food safety compliance and consistent baking quality.

Food SafetyIP65 Protection [1.1]Infrared Thermosensor+60-120°C Range

3. PCB Preheating in Wave Soldering Lines

Before entering the wave soldering machine, PCBs are preheated. The ES1B measures the exact surface temperature of the PCBs non-destructively within its +60 to +120°C range, ensuring they reach the ideal thermal state.

Problem Solved

Averts thermal shock to sensitive electronic components by precisely monitoring preheat temperatures non-invasively.

PCB ManufacturingThermal Profiling300 ms Response Time [1.1]Wave Soldering
