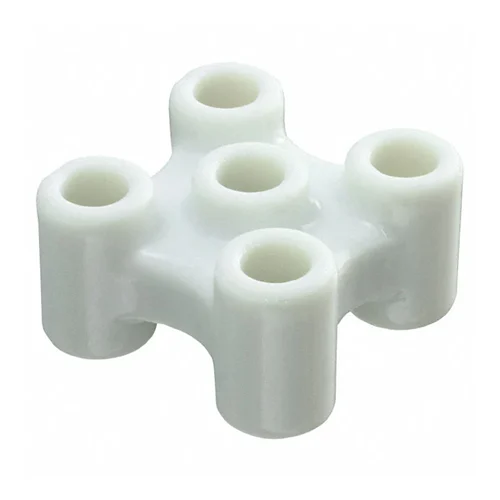

Omron F03-14 5P ceramic separator for five-electrode assemblies on PS-4S and PS-5S holders; rated to 250°C max.
The Omron F03-14 5P is a ceramic separator for five-electrode assemblies. Omron lists it for use with PS-4S and PS-5S electrode holders, including their two-wire variants, to help keep long electrode rods separated. The family data specifies an approximate mass of 30 g and a maximum use temperature of 250°C. Install it above a connecting nut as directed, since it can slide down if no connecting nut is present.
Ceramic five-pole separator for compatible PS-4S and PS-5S electrode assemblies.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Product type | Five-pole electrode separator |
| Number of poles | 5 |
| Material | Ceramic |
| Applicable holders | PS-4S, PS-4SR, PS-5S and PS-5SR |
| Mass | Approximately 30 g |
| Maximum use temperature | 250°C |
| Installation note | Install above a connecting nut; separator cannot be used if rods are not connected |
| Physical Weight (kg) | Approximately 0.030 kg (manufacturer lists approximately 30 g). |
| Dimensions L x W x H (cm) | Complete L × W × H not stated in the checked manufacturer data. |
| Supply status | Unknown; exact model and specifications are confirmed, current supply status was not established. |
Engineering suggestions require suitability checks for your installation.
Separate long rods in a five-electrode liquid-level installation to reduce the risk of rods contacting one another.
Fit the separator with the specified compatible holder, position it above a connecting nut and verify clearance in the vessel.
Support consistent separation between long electrodes used for multi-point level detection.
Use only when rods are connected and follow Omron instructions for the applicable holder and material.
